Description:

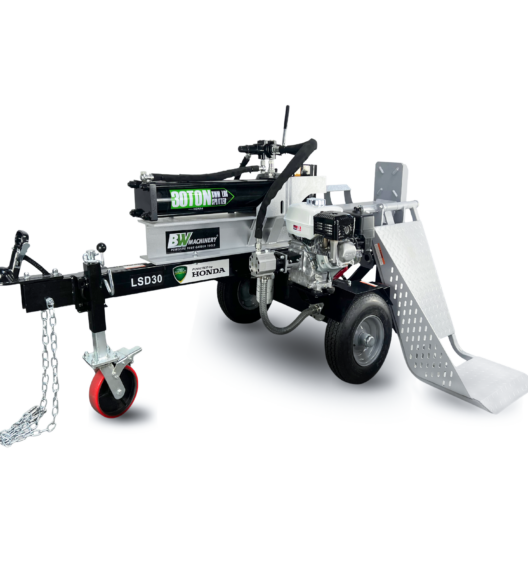

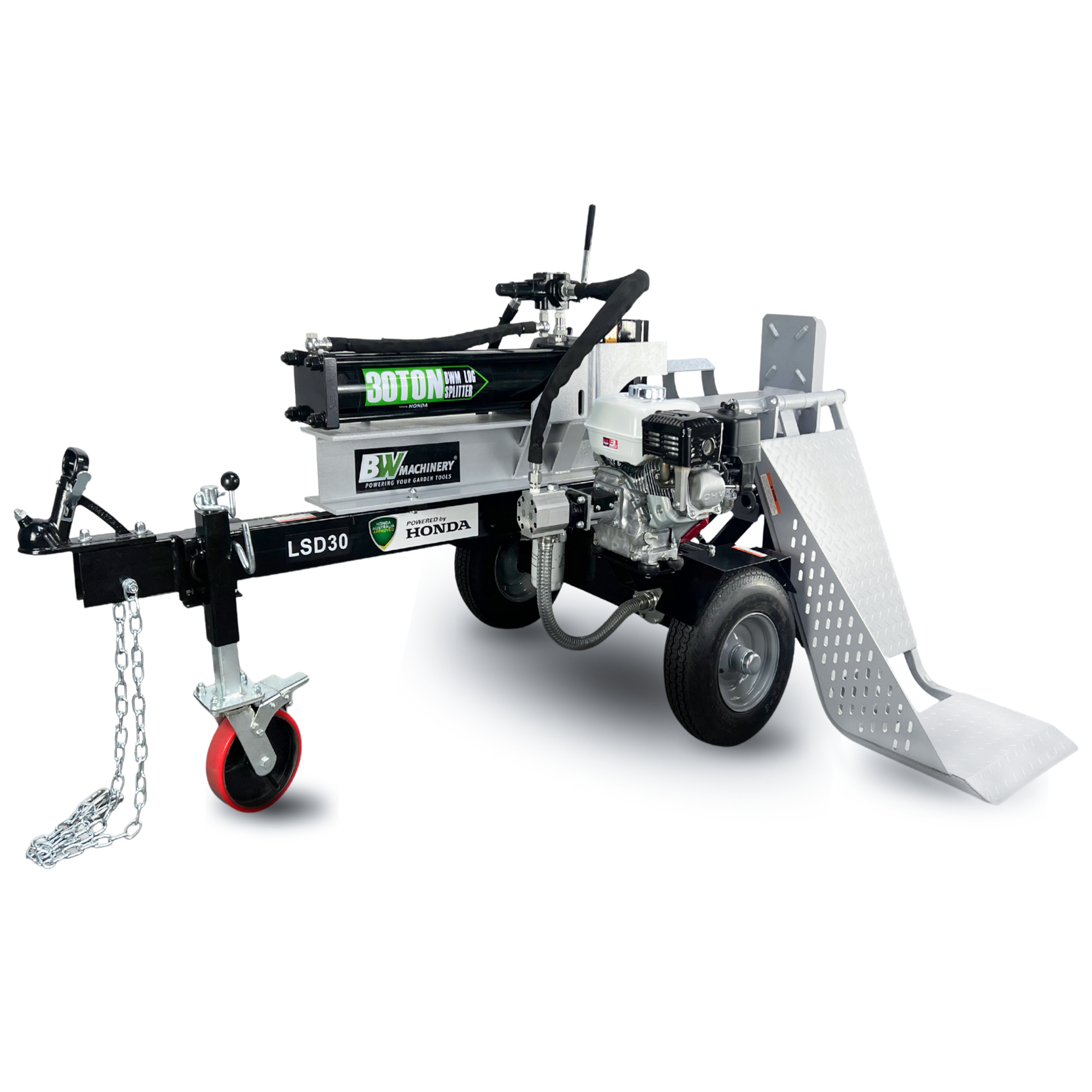

The BWM LSD30H Log Splitter is powered by a genuine commercial Honda GX200 OHV engine (Honda Australia Approved) and built to perform in demanding applications. Featuring a 2-stage, (14GPM/3500psi) pump for maximum speed without loss of pressure and is designed to split in the horizontal position. The BWM LSD30H log splitter is fitted with a hydraulic lifting table to ease your back and arms as well as an 8″ jockey wheel for smooth transportation.
All our BWM log splitters have a minimum 2-year warranty, with the Premium and Deluxe ranges having a 3-year warranty. For your peace of mind, we also offer a money-back guarantee if your log splitter fails to split your wood*.
Features:

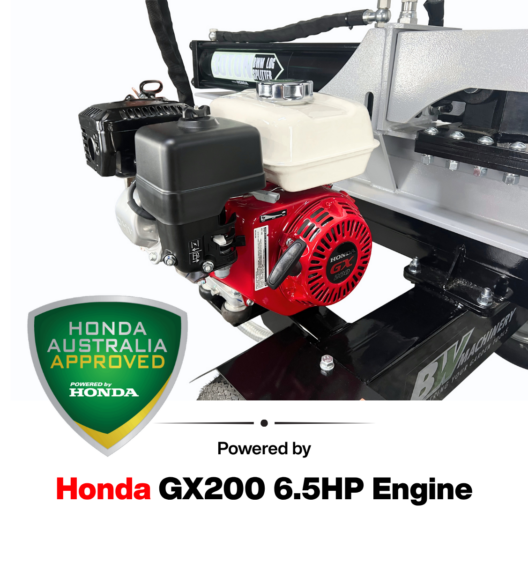

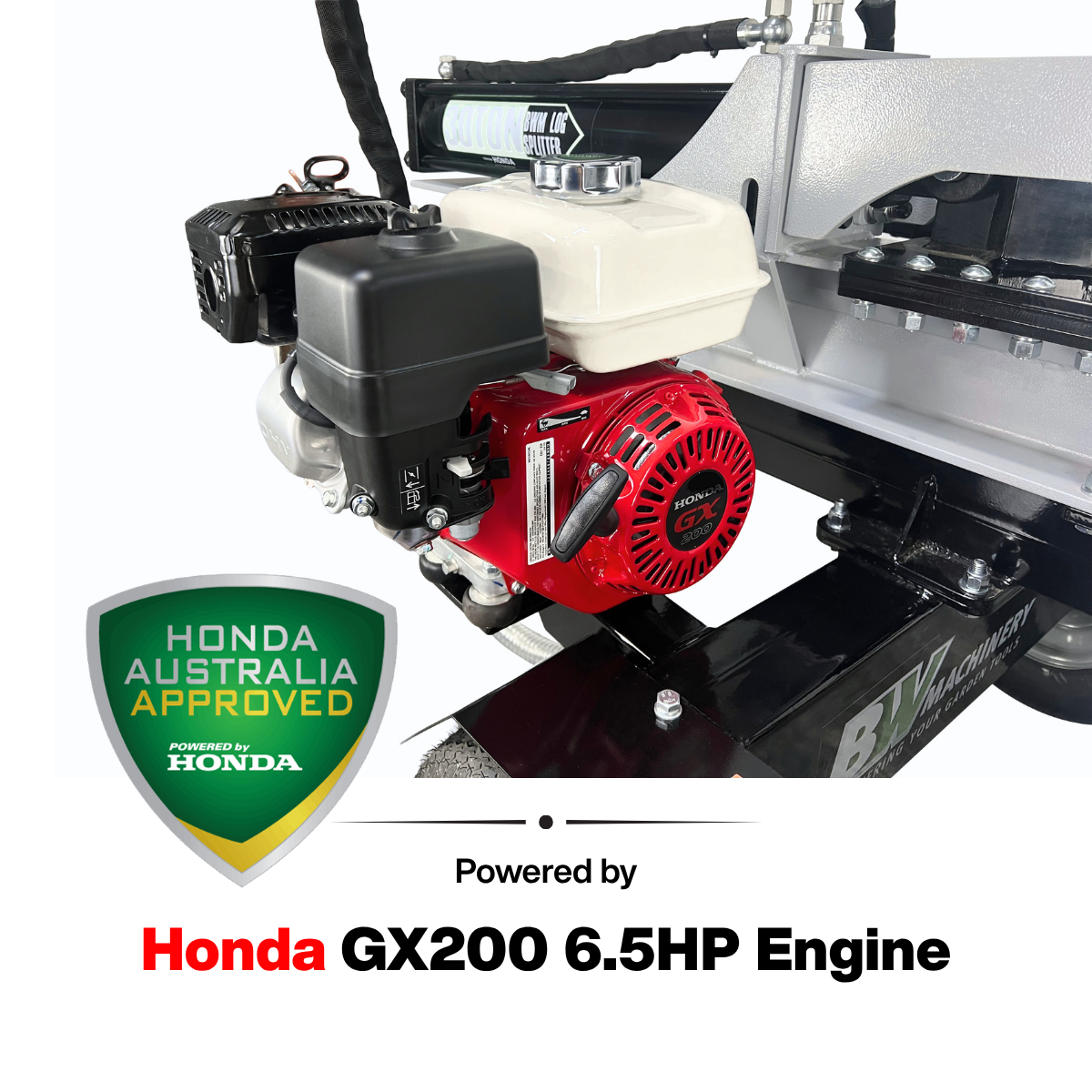

- Powered by commercial Honda GX200 OHV Engine (Honda Australia Approved)
- 30 tons splitting force

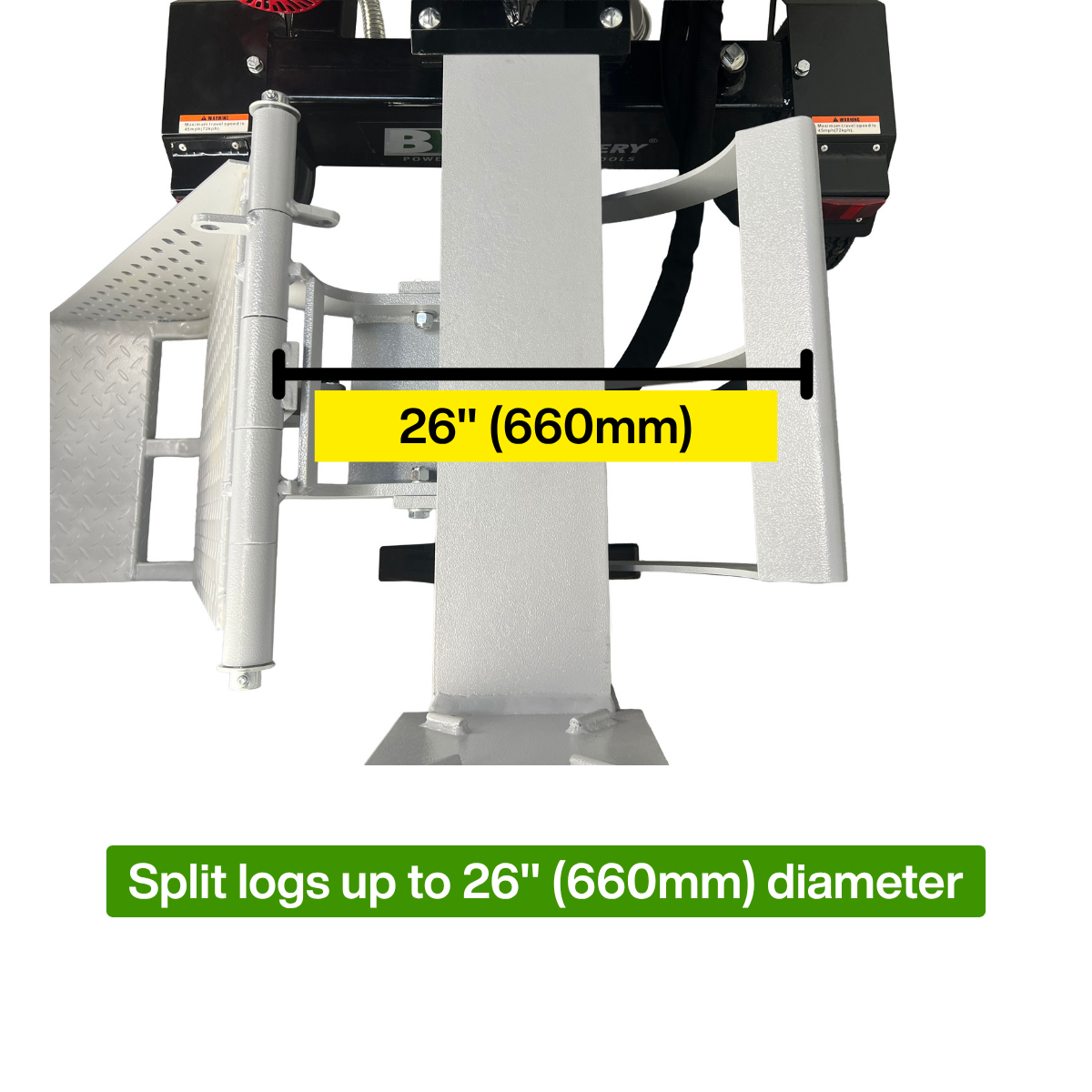

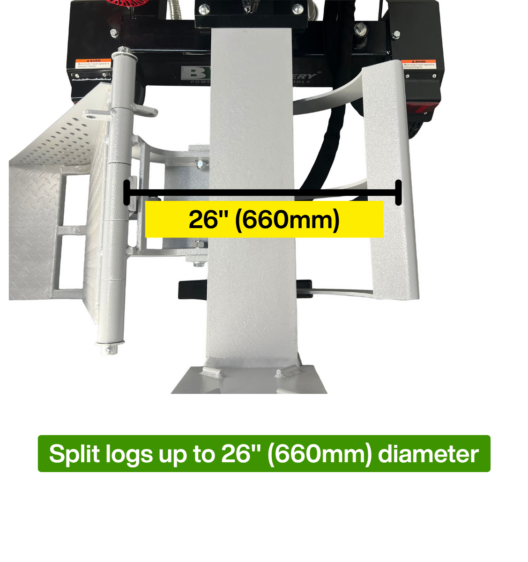

- Split logs up to 26″ (660mm) diameter

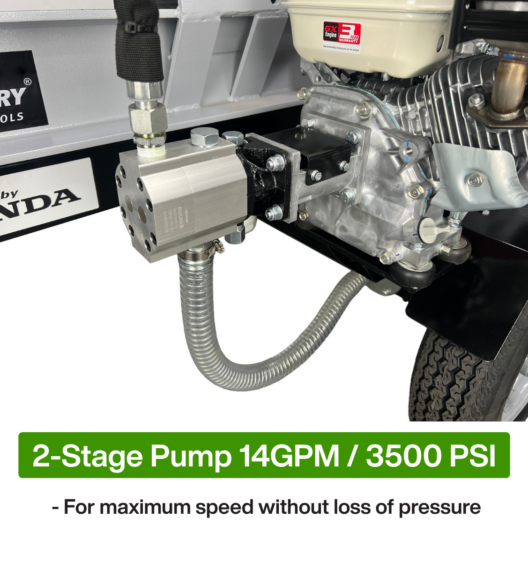

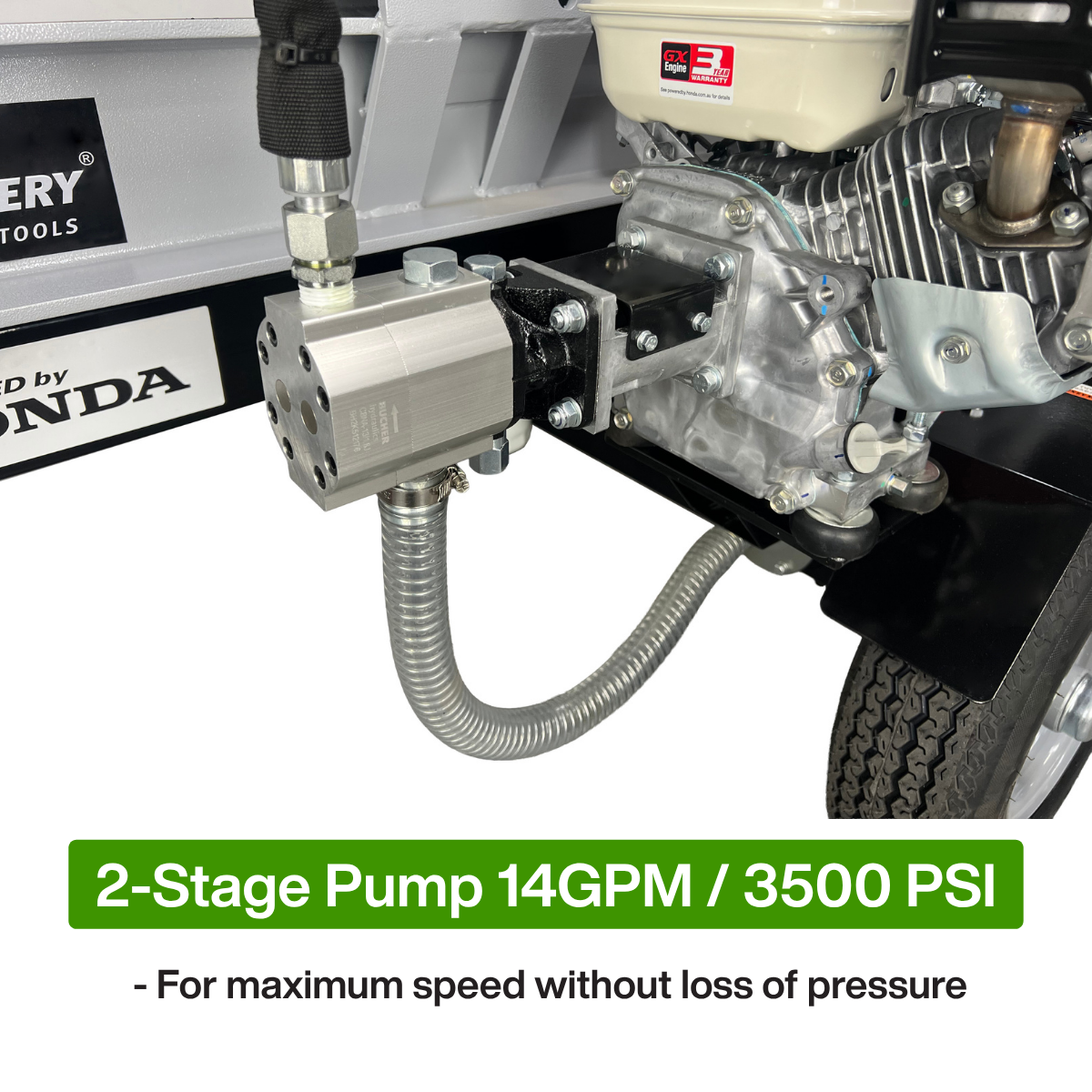

- 2 stage pump at 14GPM/3500psi
- 14 seconds cycle time

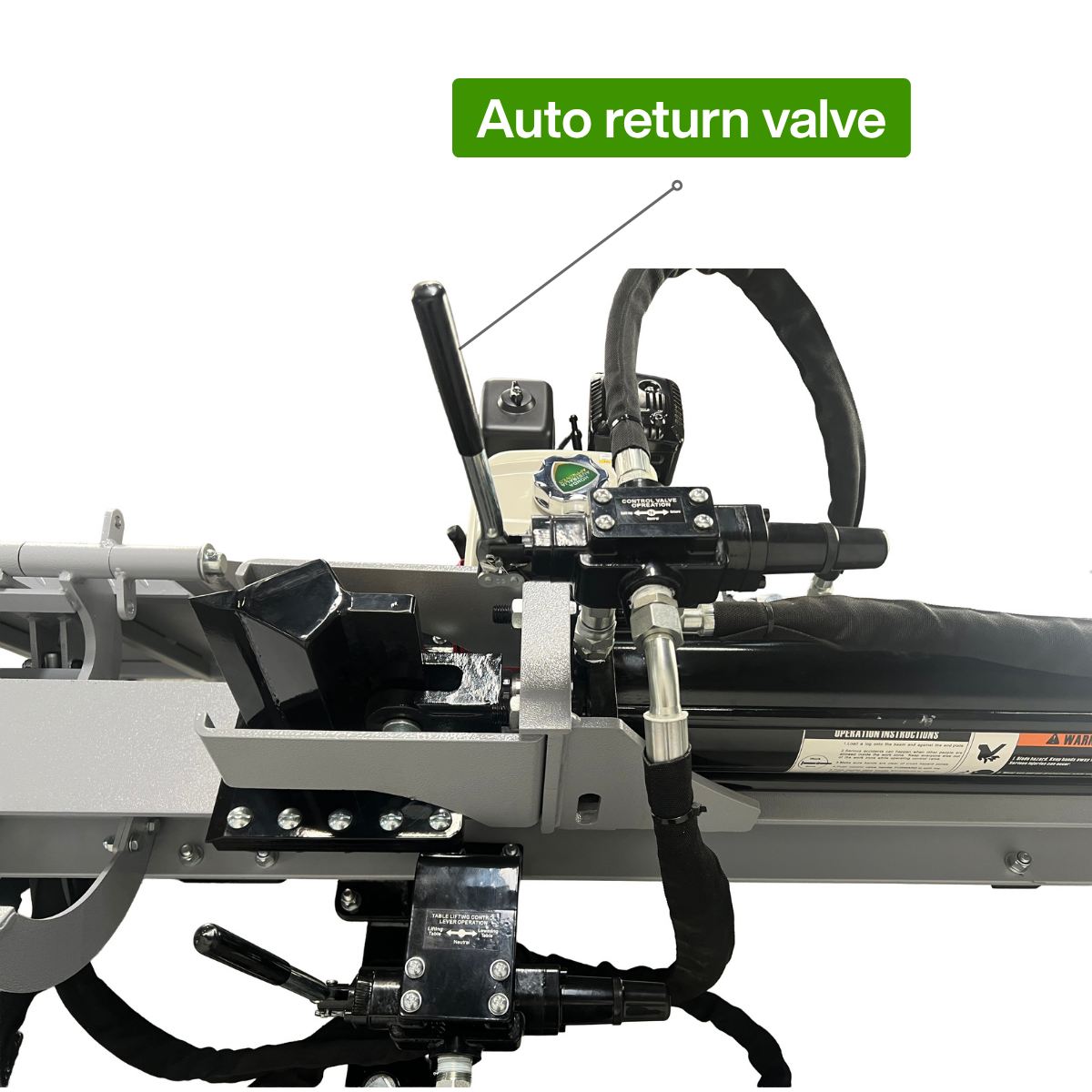

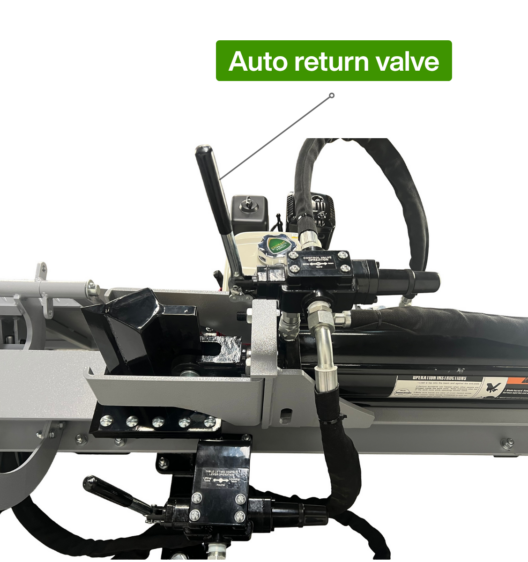

- Auto return valve

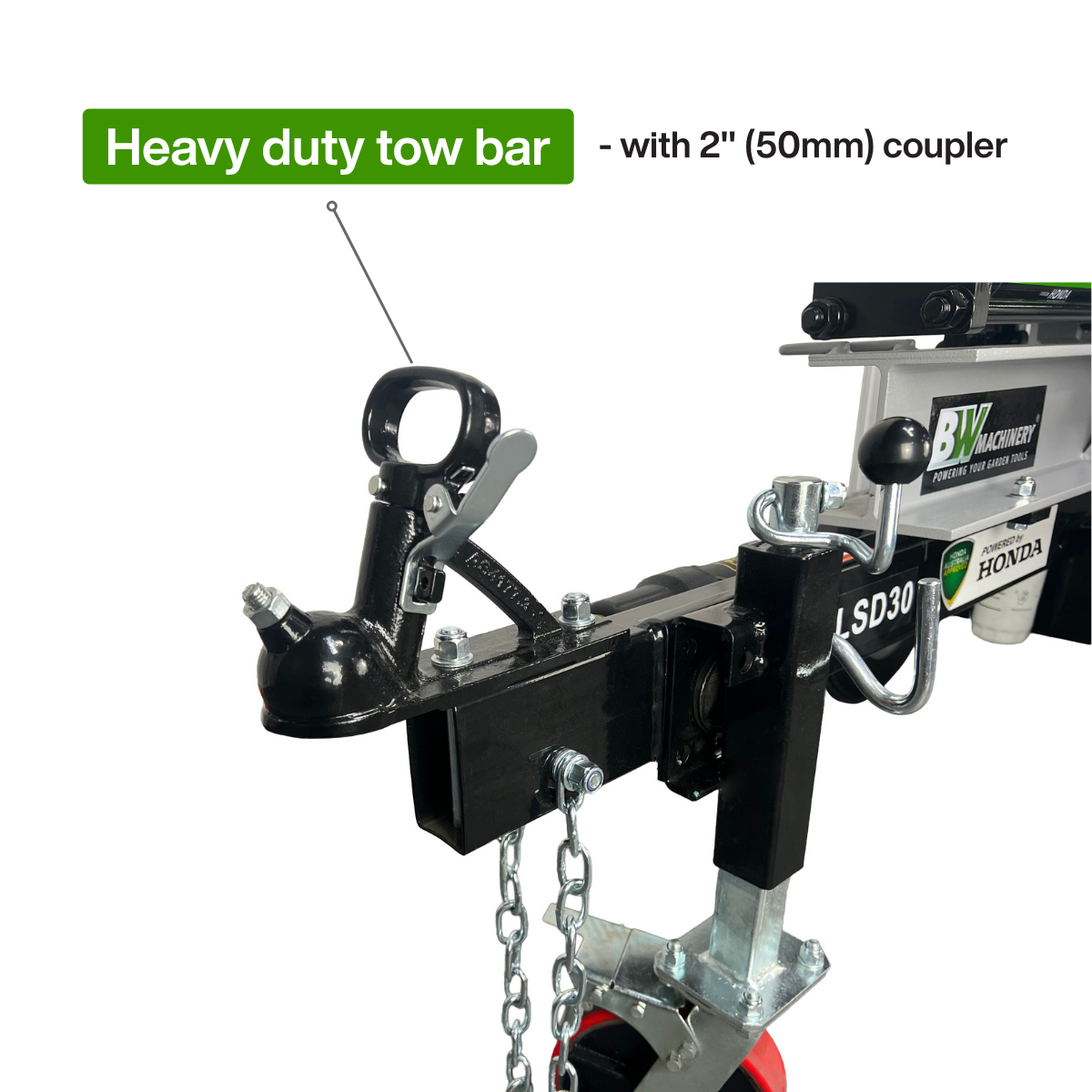

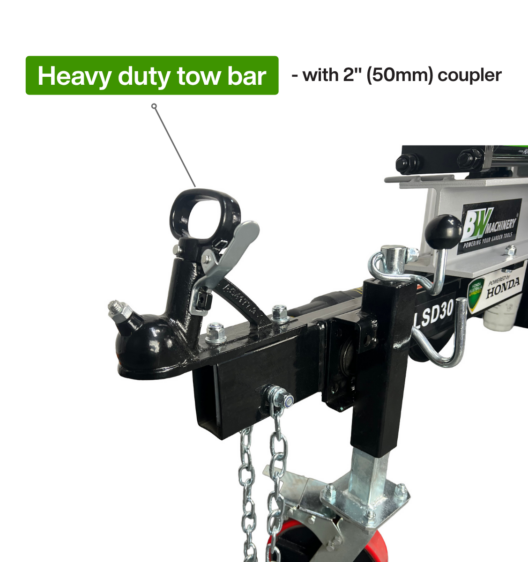

- Heavy duty tow bar with 2″ (50mm) coupler

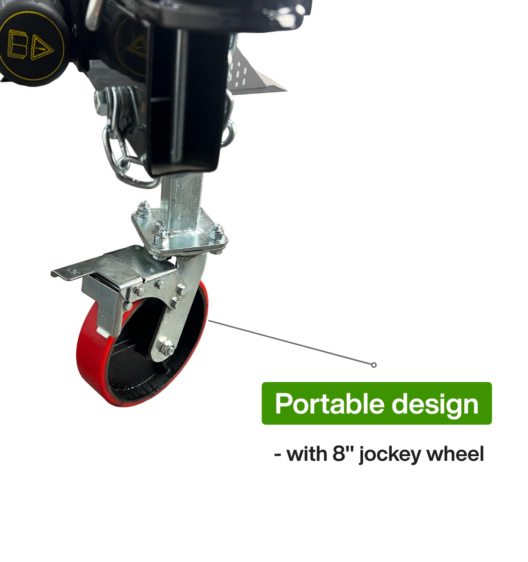

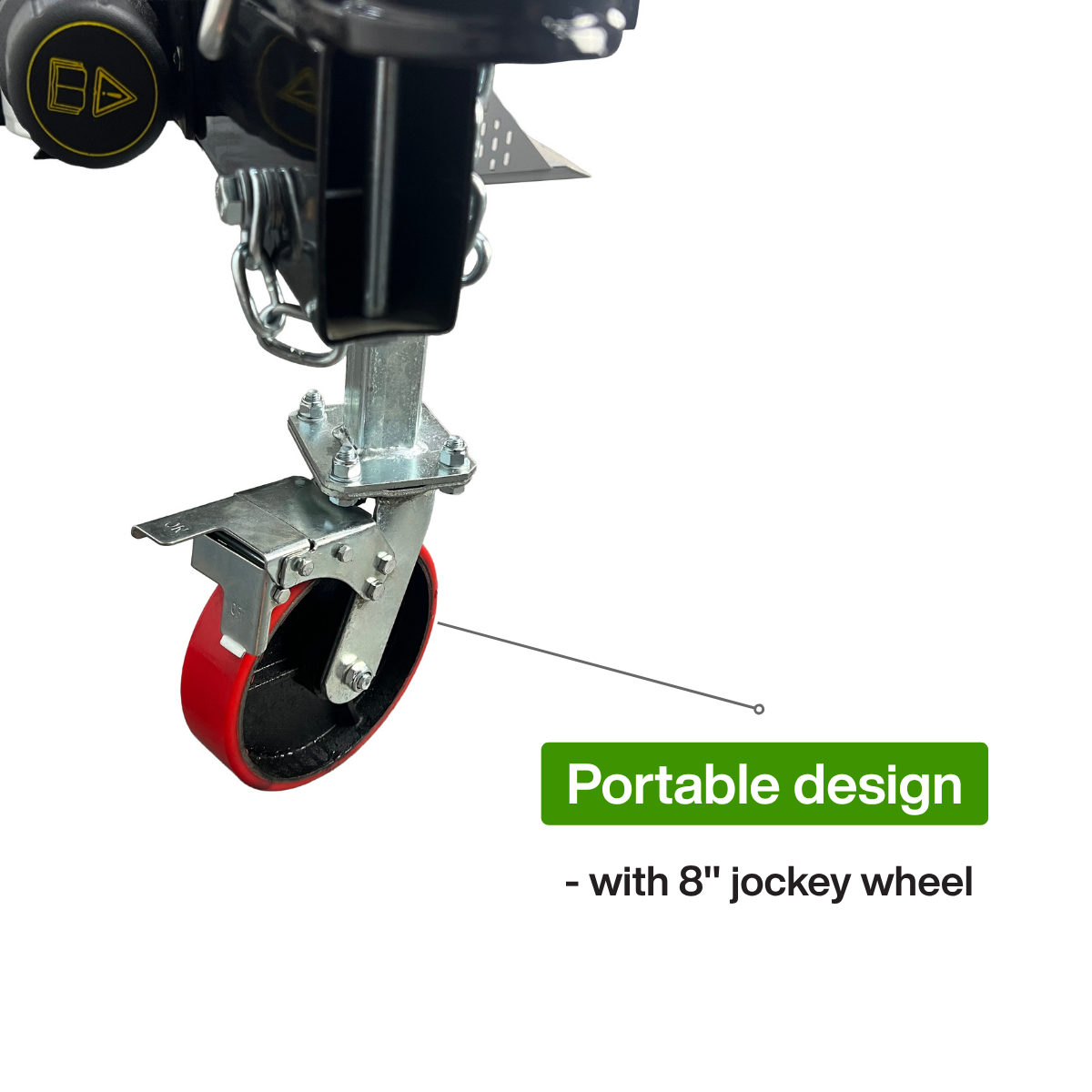

- Portable design with a 8″ jockey wheel

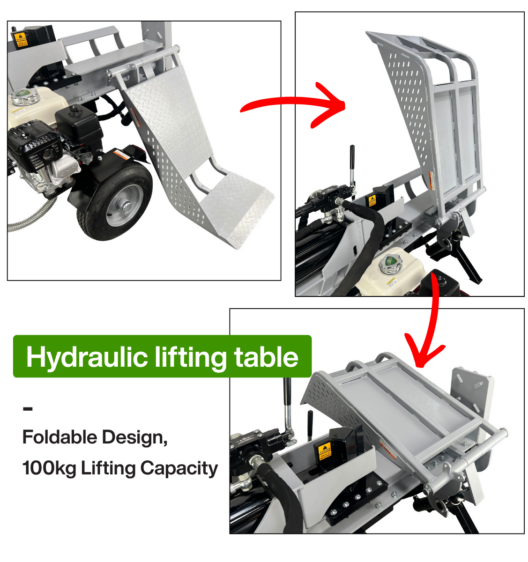

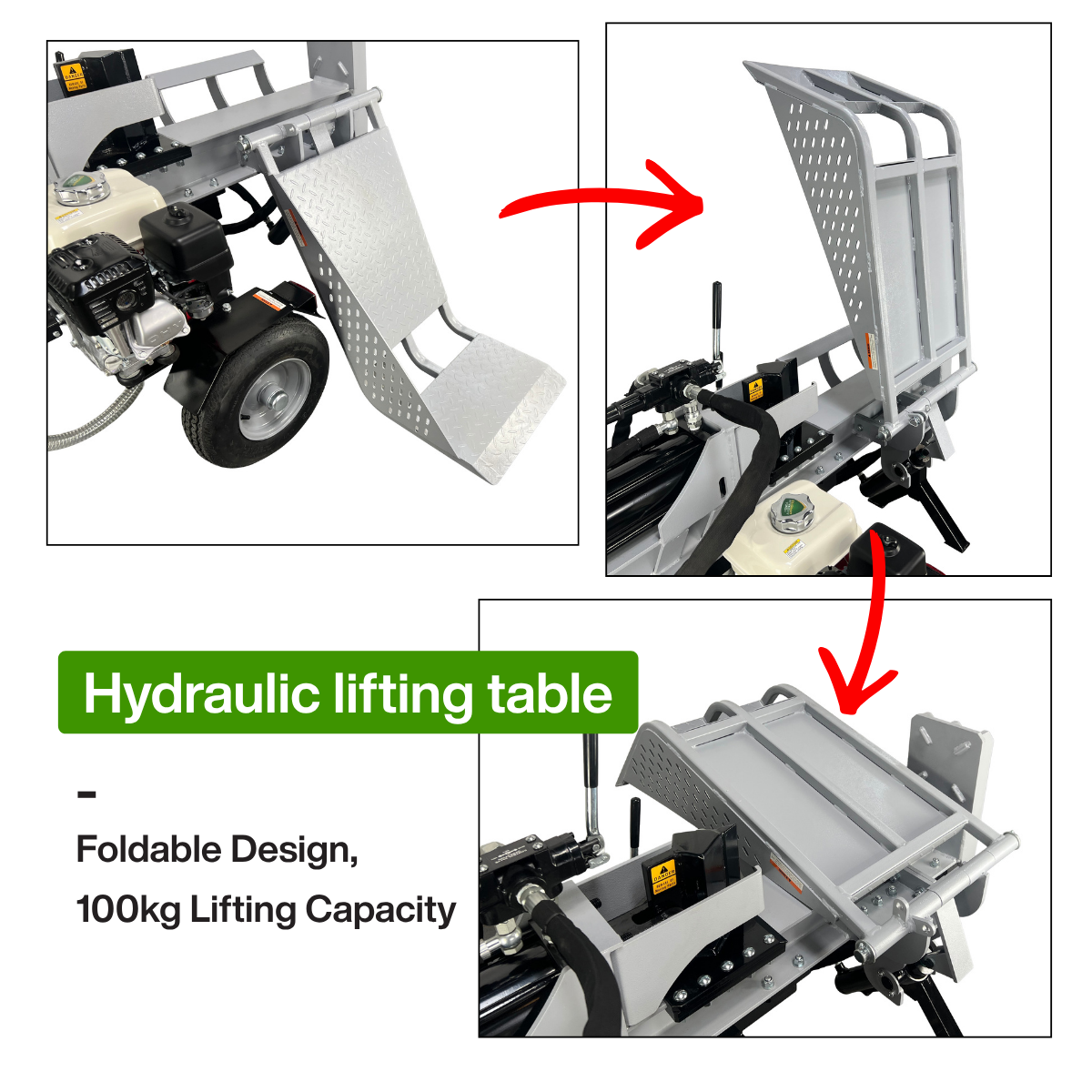

- Comes with a hydraulic lifting table (Capacity: 100kg)
- 3 Years Warranty
- 3 Years Engine Warranty
To purchase online:
B.W. Machinery - https://bwmachinery.com.au/product/bwm-lsd30h-deluxe-series-log-splitter-with-lifter/
Log Splitters Comparison Chart (Click to Enlarge):
| Model Number: | LSD30H |
| Splitting force: | 30 Ton |
| Operation: | Horizontal |
| Cycle time: | Up to 14 seconds |
| Engine: | Honda GX200 OHV engine (Honda Australia Approved) |
| Hydraulic pump: | 2 stage pump at 14GPM/3500psi |
| Hydraulic cylinder diameter: | 4.5" |
| Valve: | Auto return valve |
| Maximum log diameter: | 26″ (660mm) |
| Coupling: | 2" (50mm) with safety chain |
| Jockey wheel: | 8" |
| Lifting Table: | Yes |
| Fuel volume: | 3.1L |
| Oil volume: | 0.6L (10W30) |
| Petrol type: | Unleaded |
| Start system: | Recoil pull start |
| Weight(N.W/G.W): | 293KG/323KG |

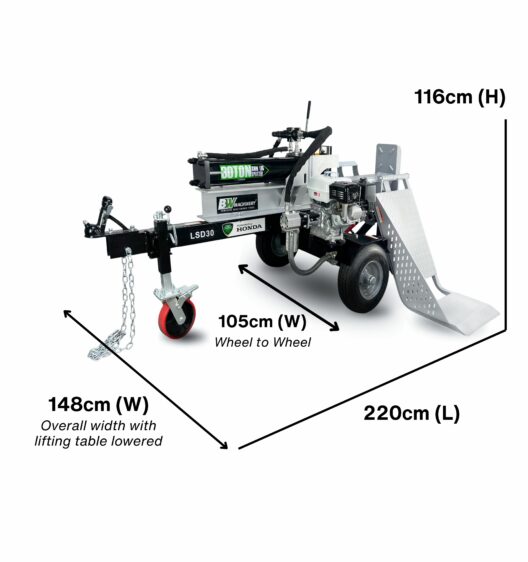

| Package dimensions (L x W x H): | 1960*540*740mm |

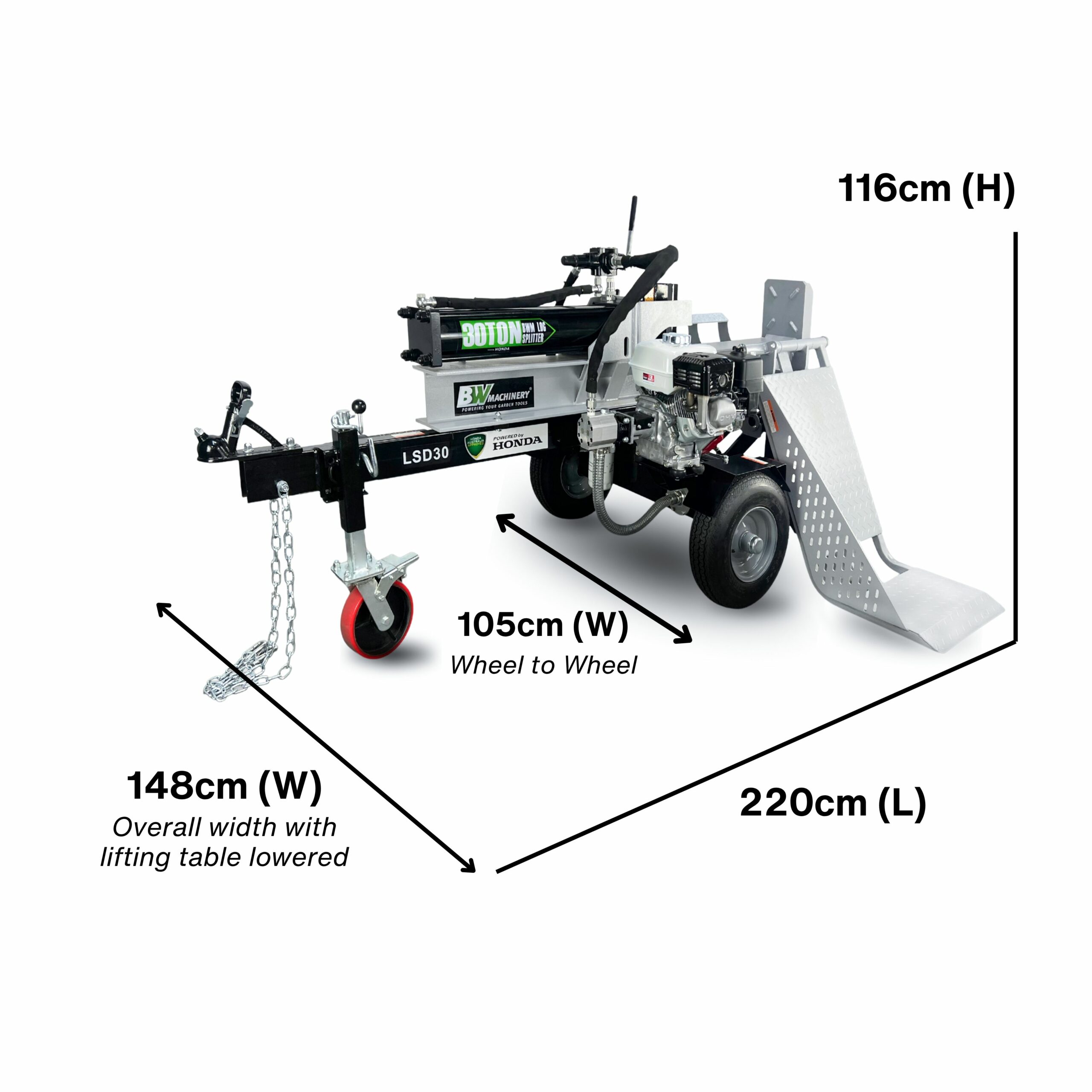

| Display dimensions (L x W x H): | 2200*1090*1160mm |
| Warranty: | 3 Years Domestic Warranty |
| 1 Year Commercial Warranty | |
| 3 Years Engine Warranty |
