BWM LS40H Log Splitter

(7.3% off)
$4,099.00 $3,799.00
BWM
Feature:
  • Commercial Honda GX390 OHV engine (Honda Australia Approved)
  • 40 tons splitting force
  • Split logs up to 30″ in diameter

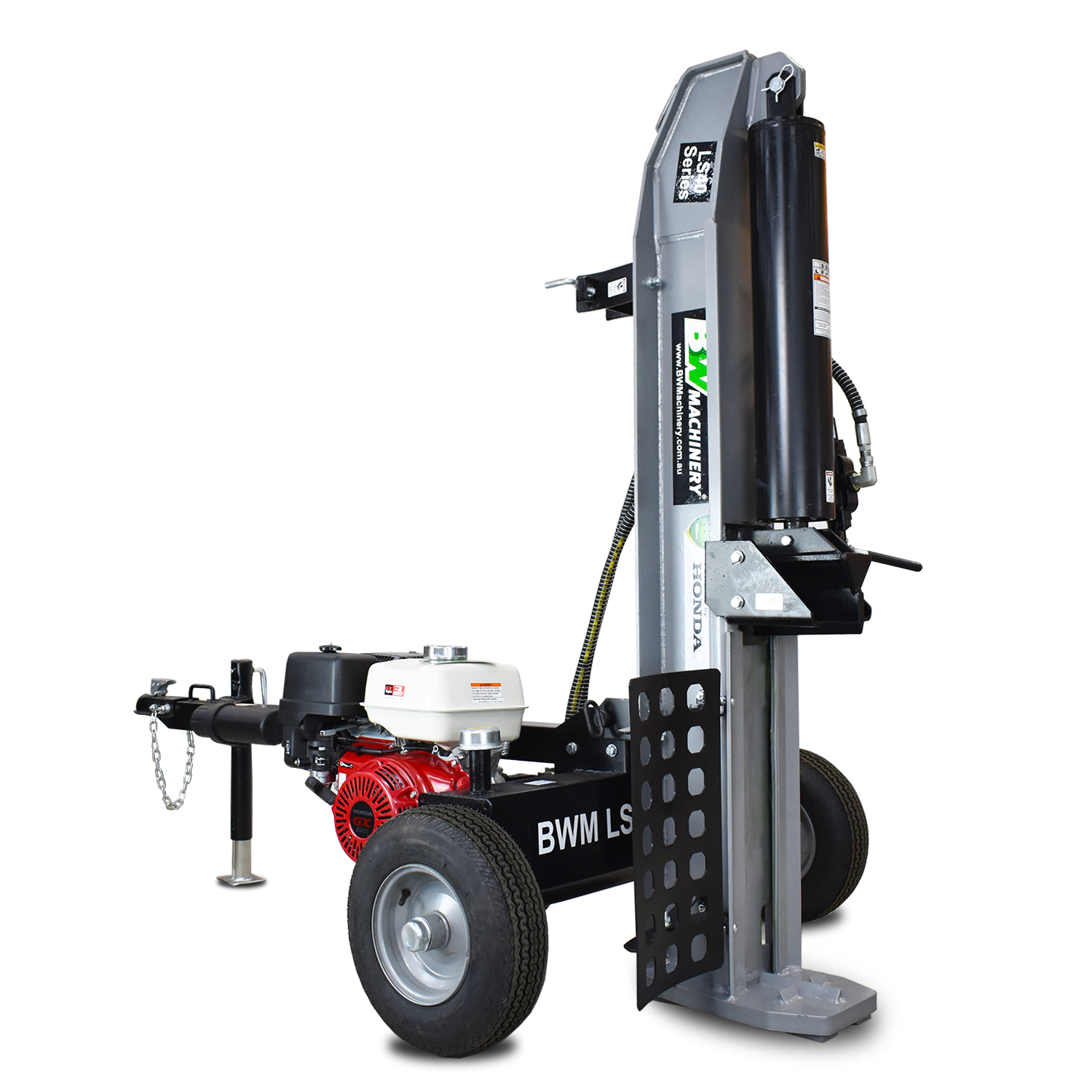

  • Works in horizontal and vertical positions
More
white-map-icon Dealer Locator
  • Product Description
  • Specification
  • Video Gallery
  • User Manual
  • Spare parts list
  • Brochures
Product Description

*This product is exclusive to BWM stores and TKD stores.



Bonus Pack: FREE log catcher x 1, Hydraulic Oil (25L) x 1, Engine Oil x 2

*Assemble service is available for in-store pick up only.

Description:

The BWM LS40H Log Splitter is powered by a genuine commercial Honda GX390 OHV engine (Honda Australia Approved) and built to perform in demanding applications. Featuring a 2-stage, 66 LPM (17.5 GPM/4000psi) pump for maximum speed without loss of pressure and is designed to split in both vertical and horizontal positions, for logs up to 30” in diameter. A convenient lift handle provides added control for easier and safer transitions from vertical to horizontal positions while the high-performance wedge makes splitting easier and the log cradle moves split wood more efficiently.

All our BWM log splitters have a 2 years warranty. For your peace of mind, we offer money back guarantee if your log splitter fails to split your wood*

Features:
  • Powered by commercial Honda GX390 OHV engine (Honda Australia Approved)
  • 40 tons splitting force
  • Working in both horizontal and vertical positions
  • Split logs up to 30″ (762mm) in diameter
  • 2 stage pump at 17.5 GPM/4000psi
  • Up to 11.5 seconds cycle time
  • Auto return valve
  • Heavy duty tow bar with 50mm coupler
  • Portable design for easy transportation
  • 2 Years Warranty
  • 3 Years Engine Warranty



To purchase online:

B.W. Machinery - https://bwmachinery.com.au/product/bwm-ls40h-log-splitter/

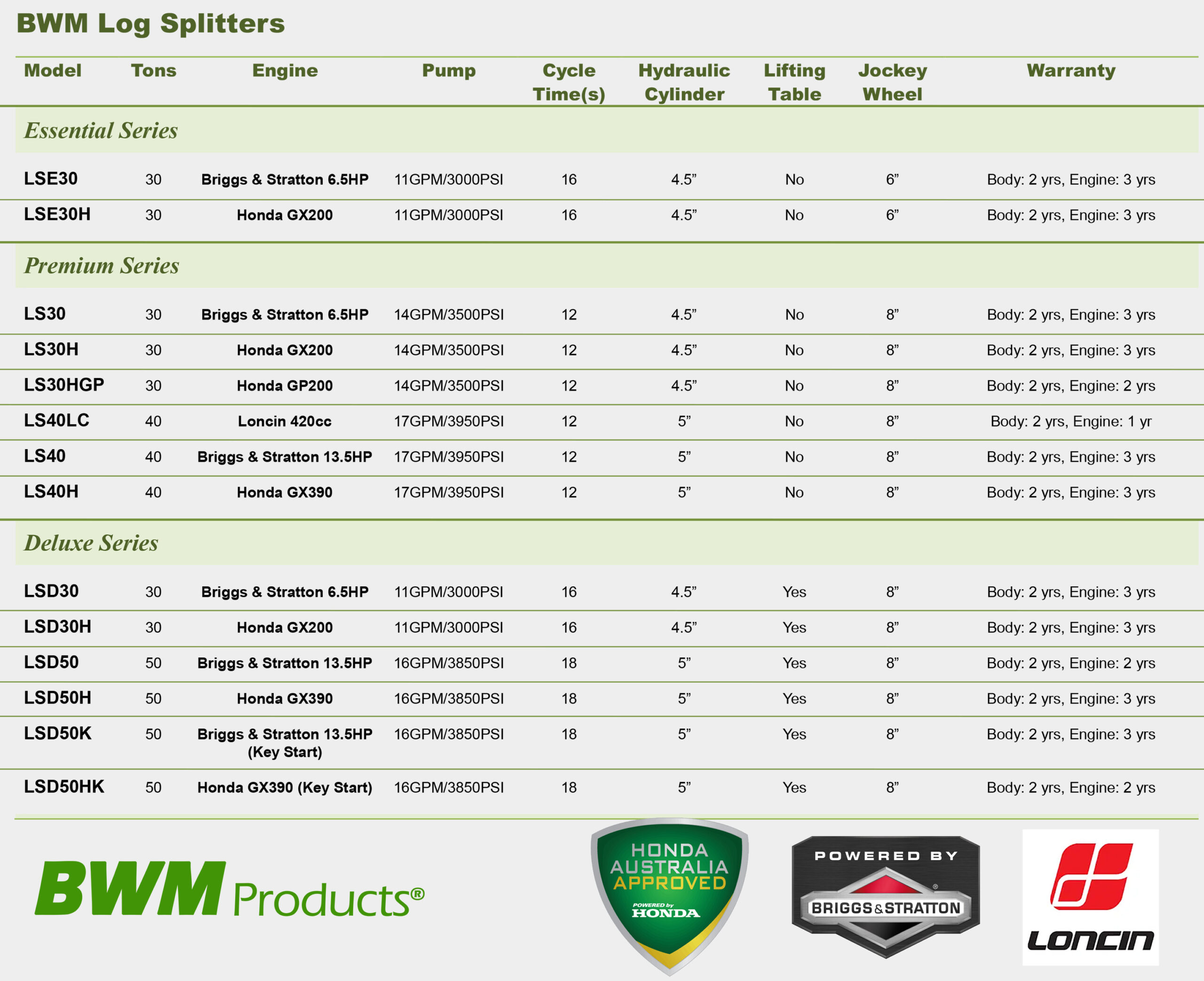

Comparison Chart (click to enlarge)

Bwm Log Splitter Compare (website)

Specification
Splitting force 40 Ton
Operation Horizontal and vertical
Cycle time Up to 11.5 seconds
Engine Honda GX390 OHV engine (Honda Australia Approved)
Hydraulic pump 2 stage pump at 17.5 GPM/4000psi
Hydraulic cylinder diameter 5"
Valve Auto return valve
Maximum log diameter 30" (762mm)
Maximum log length 25" (635mm)

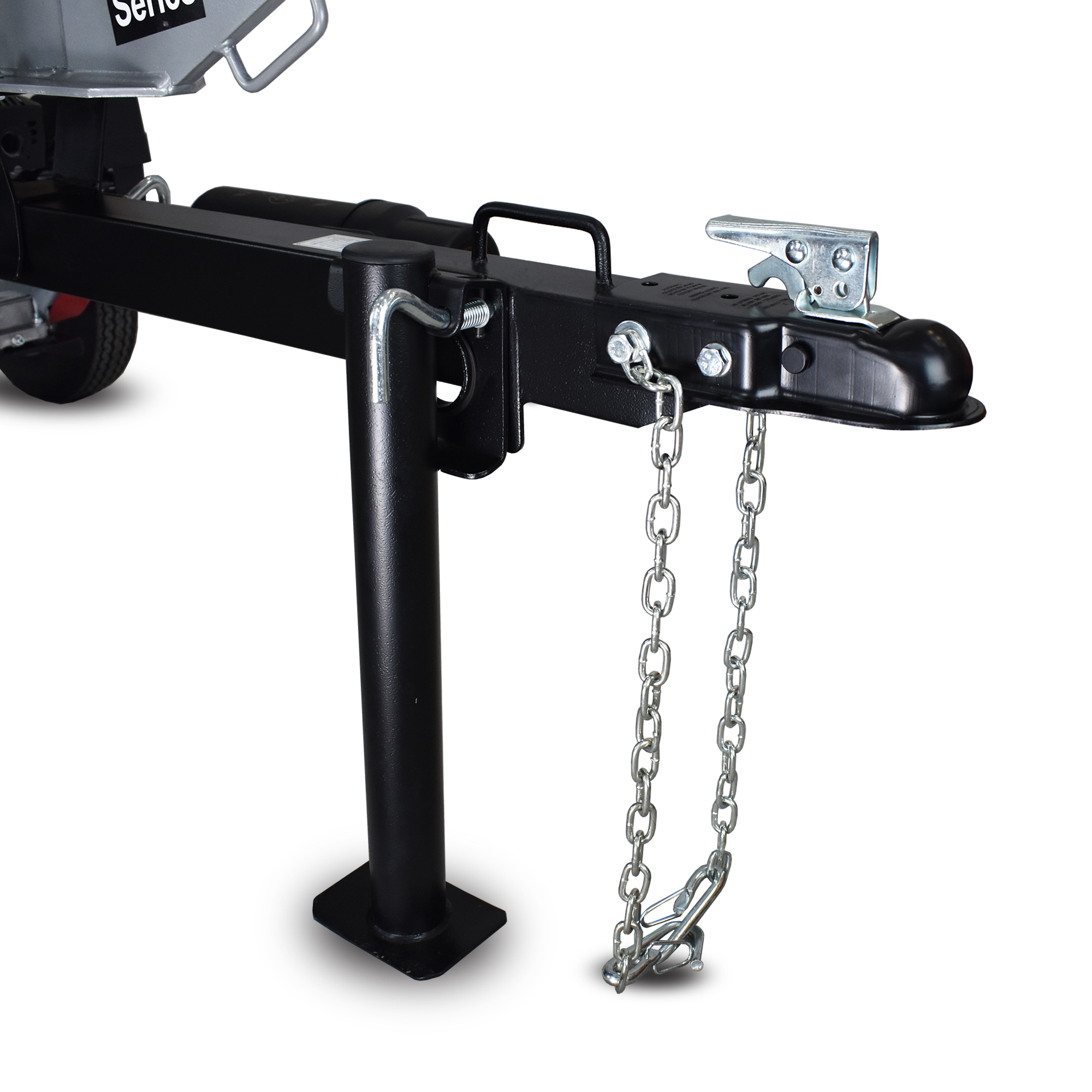

Coupling 50mm with safety chain
Fuel volume 6.1L
Oil volume 1.1L (10W30)
Petrol type Unleaded
Start system Recoil pull start
Weight(N.W/G.W) 269KG/306KG

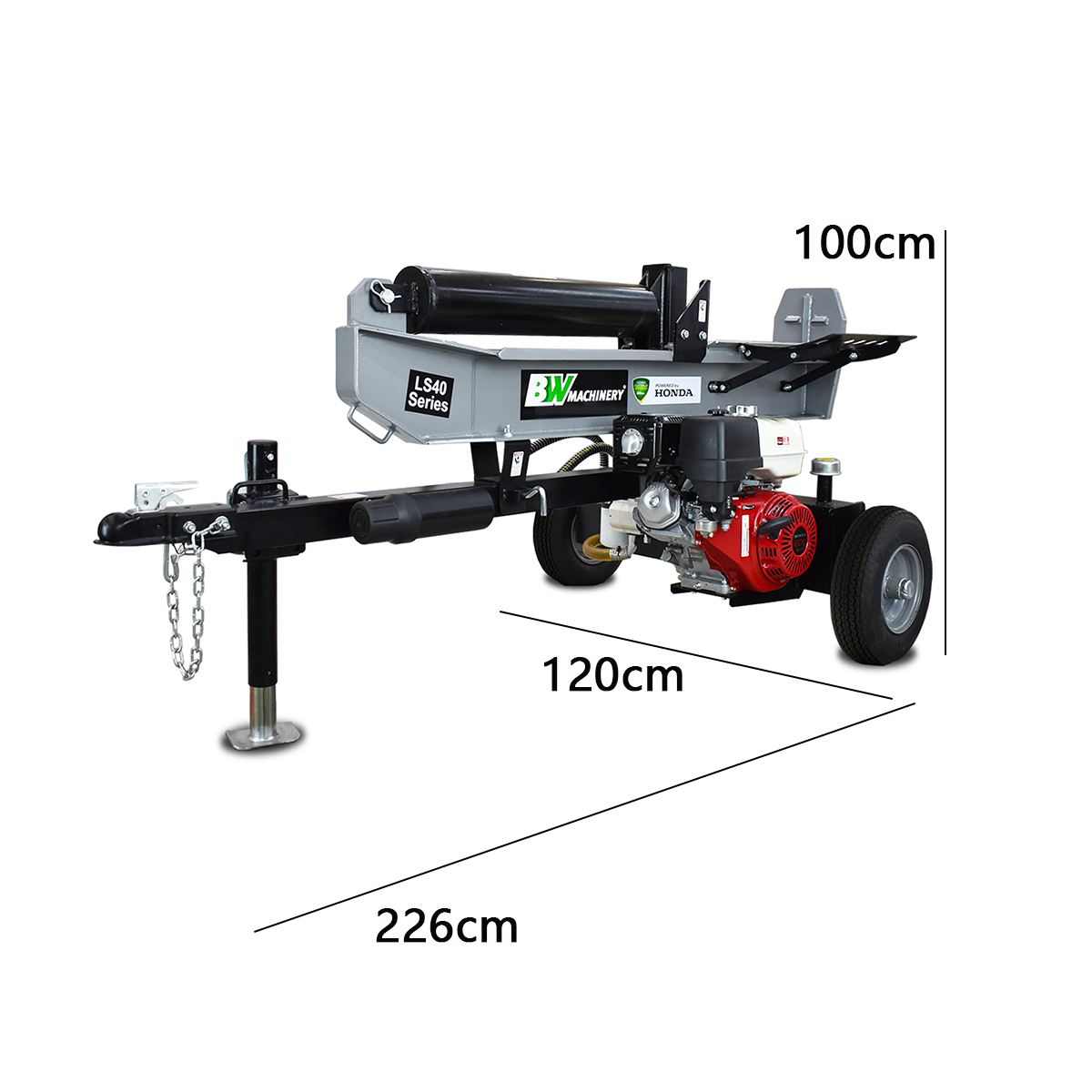

Display dimensions(LxHxW) 2260*1000*1200mm
Package dimensions 1840*800*550mm
Warranty 2 Years Domestic Warranty
3 Years Engine Warranty
Video gallery
video_thumb
User Manual

BWM LS40H Log Splitter Manual (no jockey wheel version)

BWM LS40H Log Splitter Manual (jockey wheel version)

No jockey wheel version: Assembly instruction from Page 9 to 19.
Jockey wheel version: Assembly instruction from Page 7 to 12.

Need more information please contact us on 1300 454 585.

Spare parts list

pdf BWM LS40H Log Splitter Spare Parts (no jockey wheel version)

pdf BWM LS40H Log Splitter Spare Parts (jockey wheel version)

Need more information please contact us on 1300 454 585.

Brochures

pdf BWM Premium Series Log Splitter Brochure

pdf BWM Log Splitters Comparison Chart
