Bonus Pack: Hydraulic Oil x 1, Honda Engine Oil (1L) x 2
*Assemble service is available for in-store pick up only (extra $170).
Description:

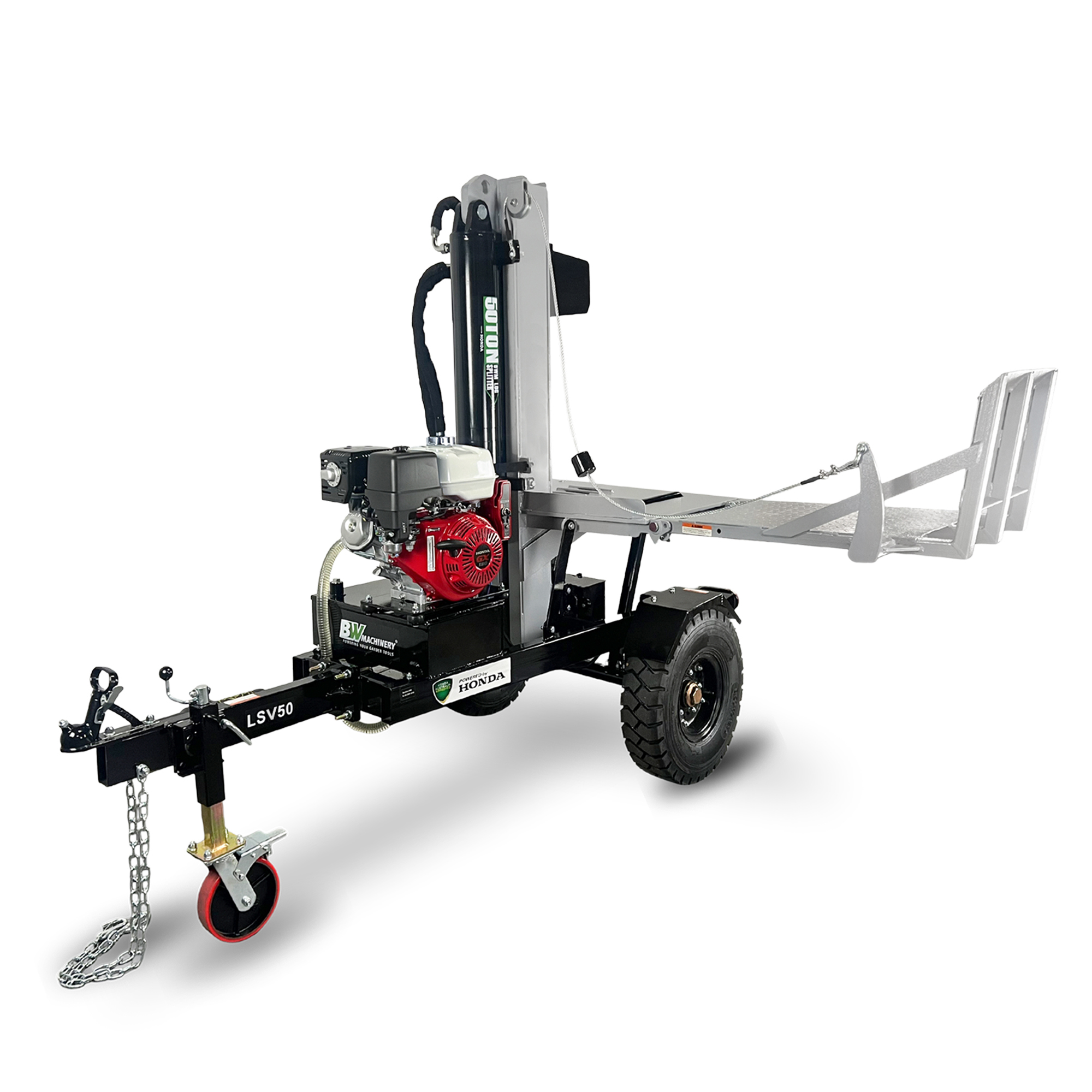

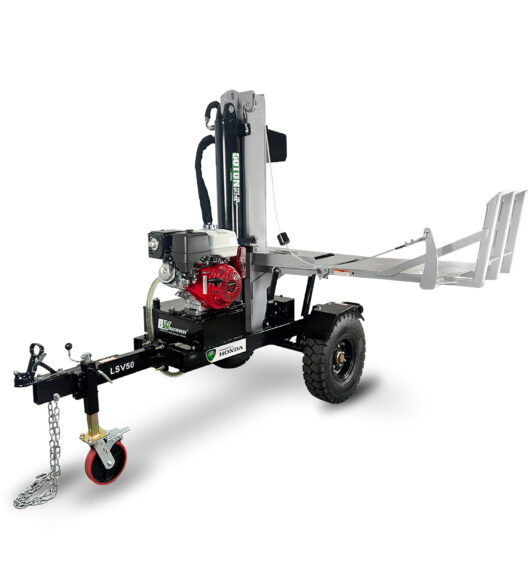

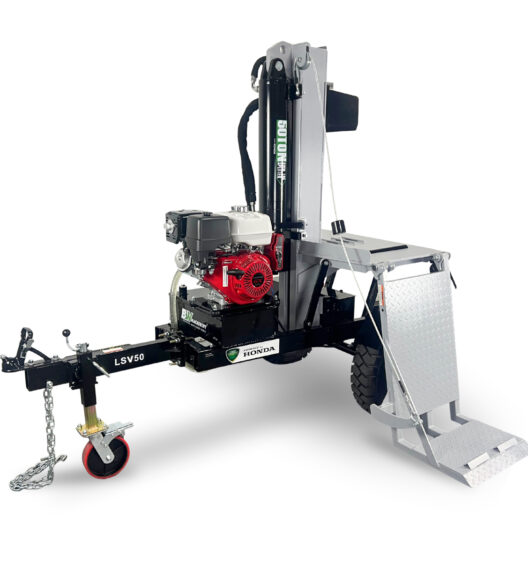

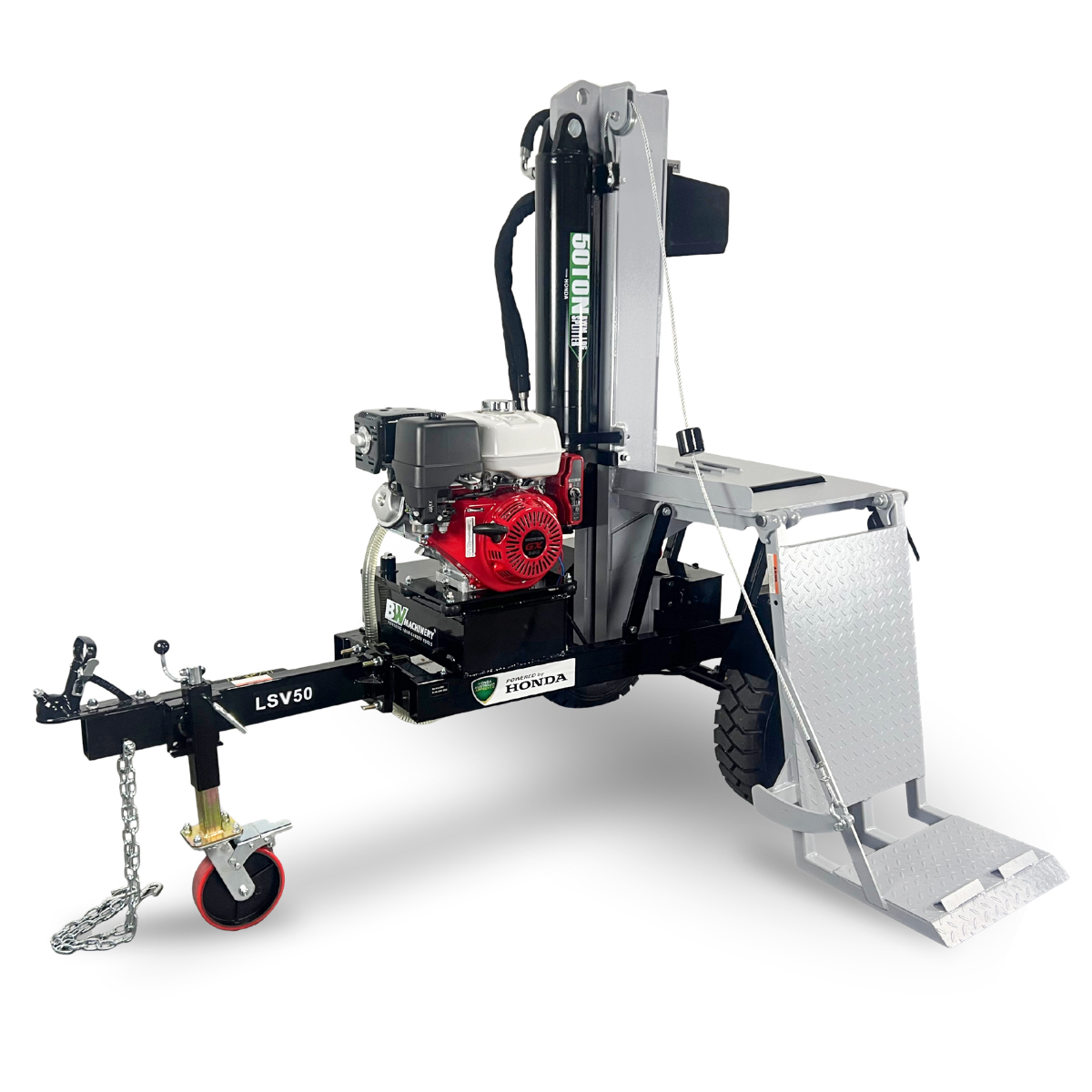

The BWM LSV50HK Log Splitter is powered by a genuine commercial Honda GX390 OHV engine (Honda Australia Approved), with a key start function, and is built to perform in harsh Australian applications.

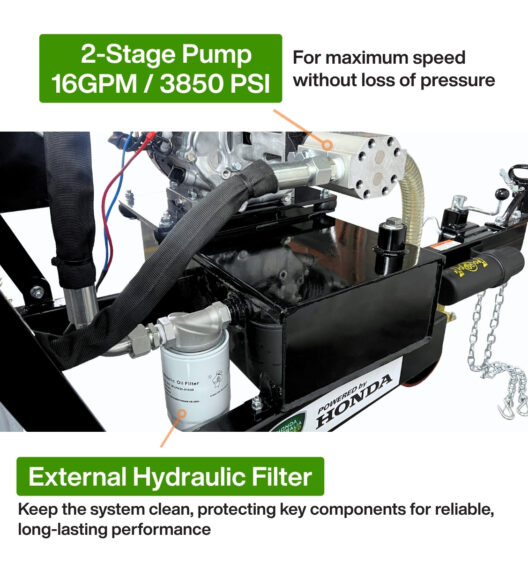

Featuring a 2-stage, (16GPM/3850psi) pump for maximum speed without loss of pressure, this machine is well equipped to split logs up to 20″ in diameter with ease.
Utilizing an extremely heavy-duty winch and axe design compared to other vertical splitters in its class, alongside a hydraulic powered lifting table, turning logs into firewood at a comfortable waist height has never been made so easy.
All our BWM log splitters have a minimum 2-year warranty, with the Premium and Deluxe ranges having a 3-year warranty. For your peace of mind, we also offer a money-back guarantee if your log splitter fails to split your wood*.
Features:

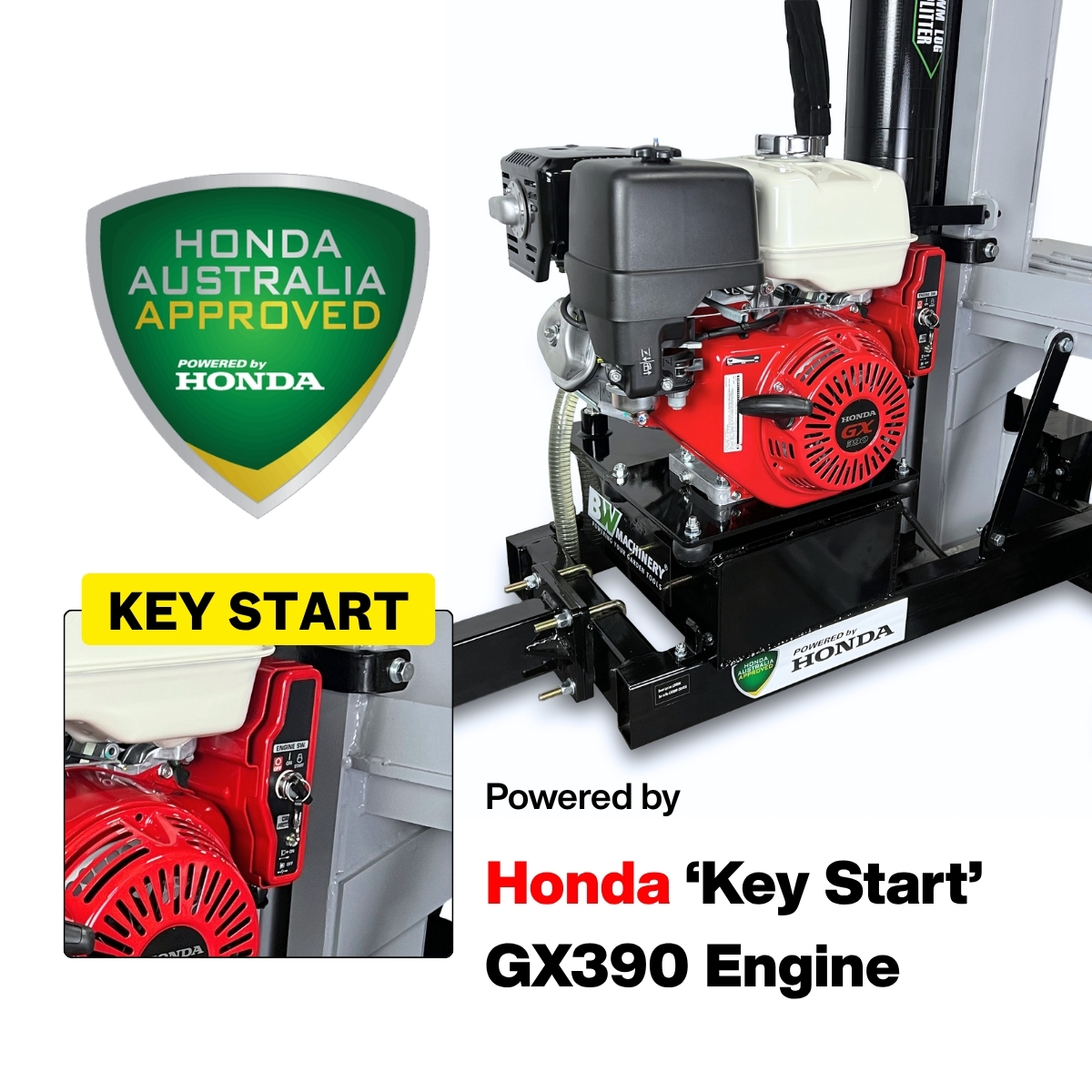

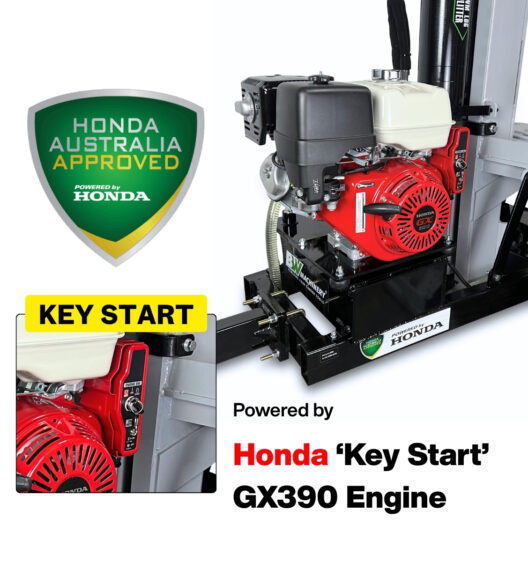

- Powered by commercial Honda GX390 OHV “key start” engine (Honda Australia Approved)
- 50 tons splitting force

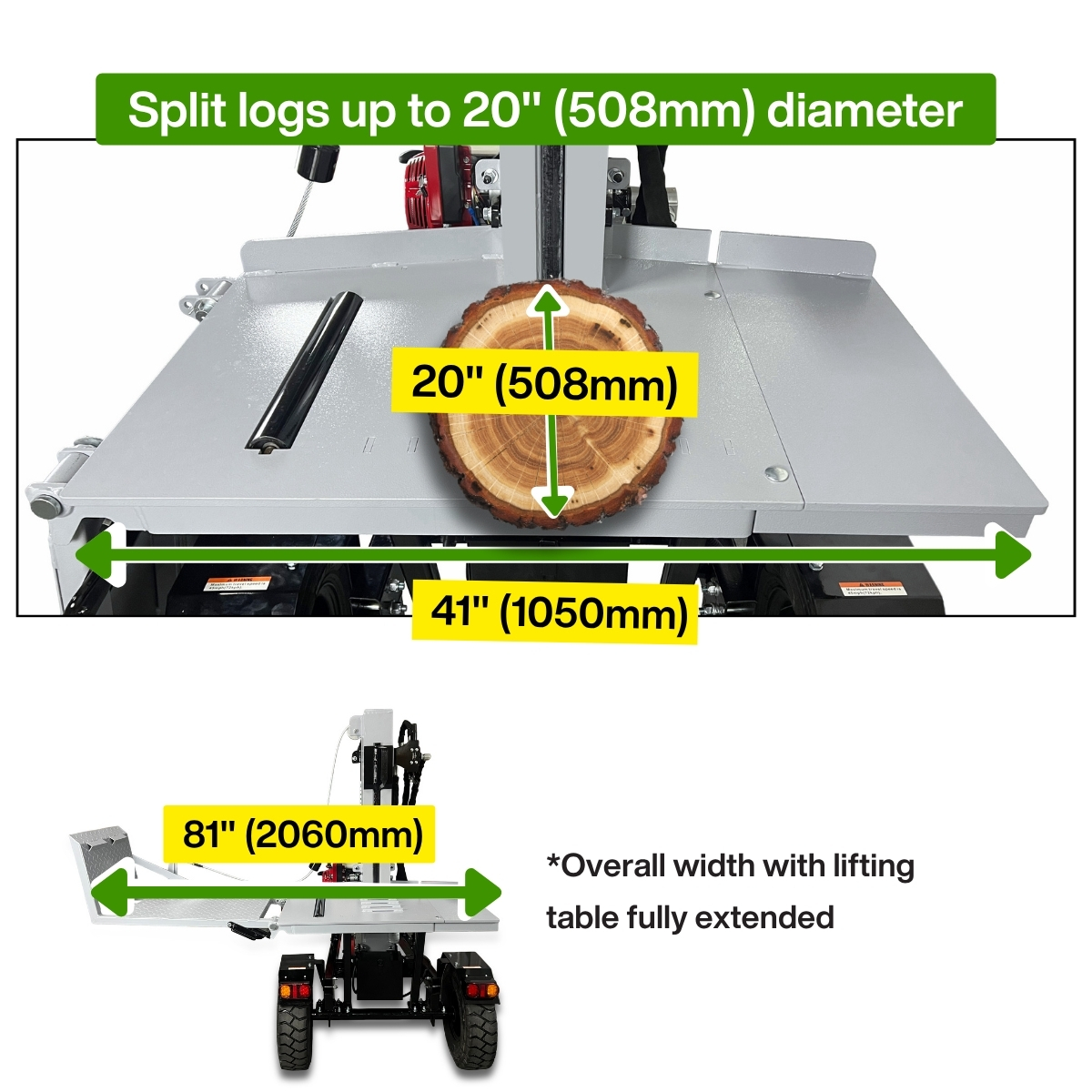

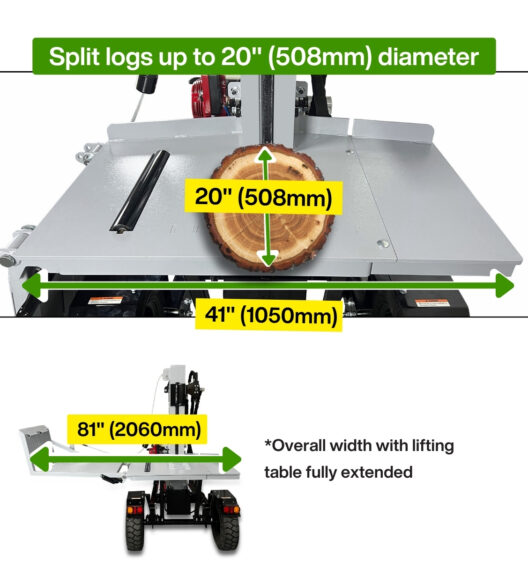

- Split logs up to 20″ (508mm) in diameter

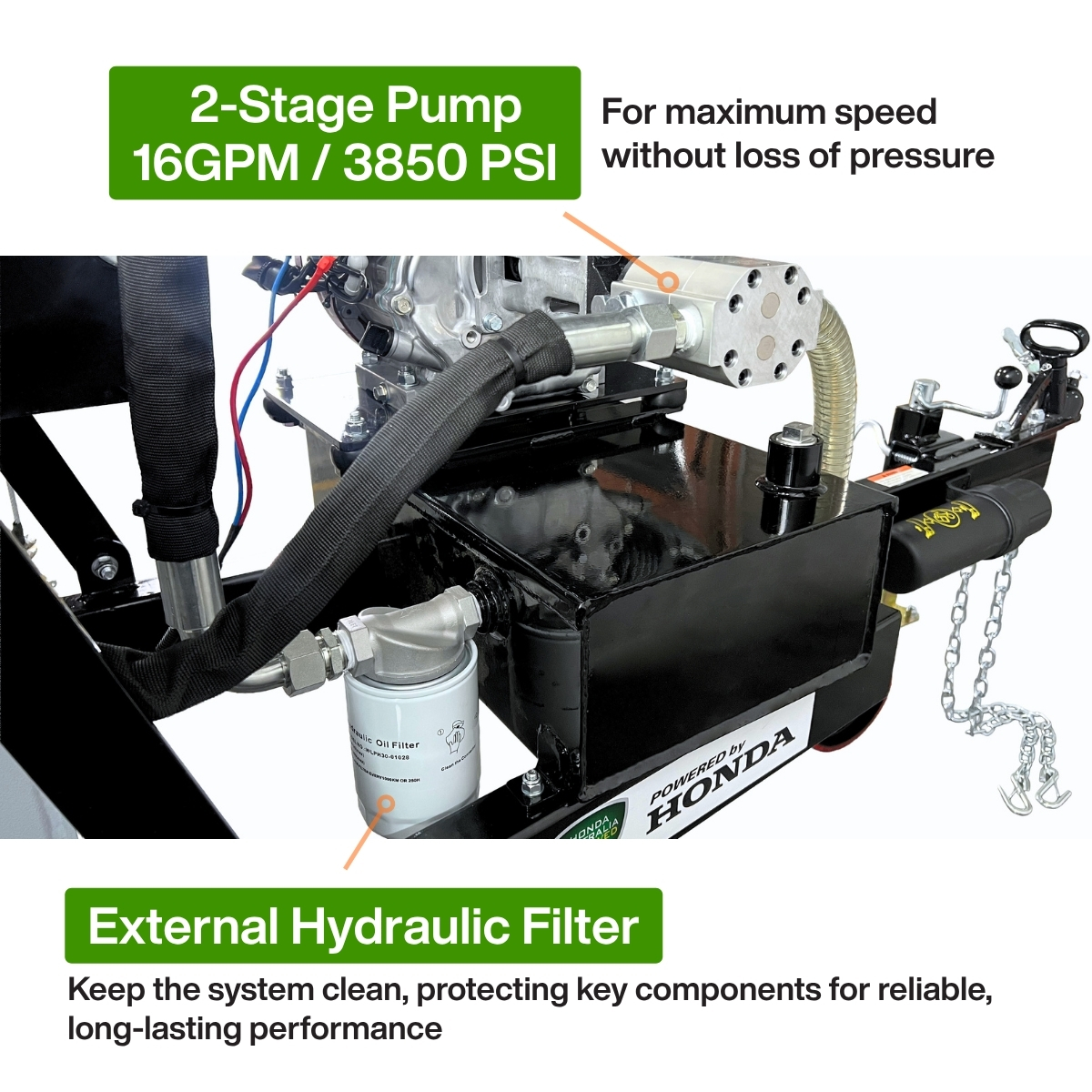

- 2 stage pump at 16GPM/3850psi
- 12 seconds cycle time

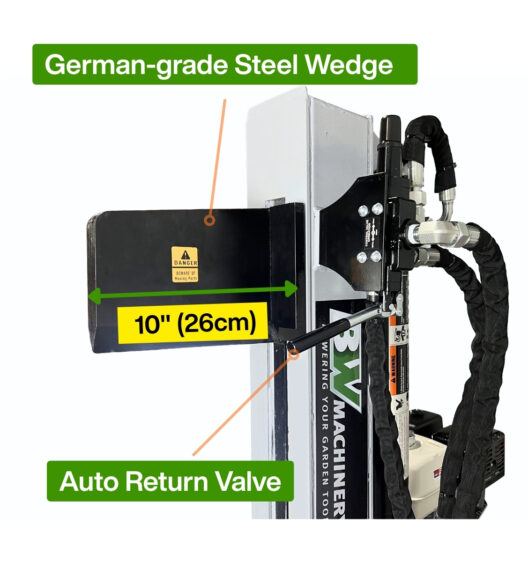

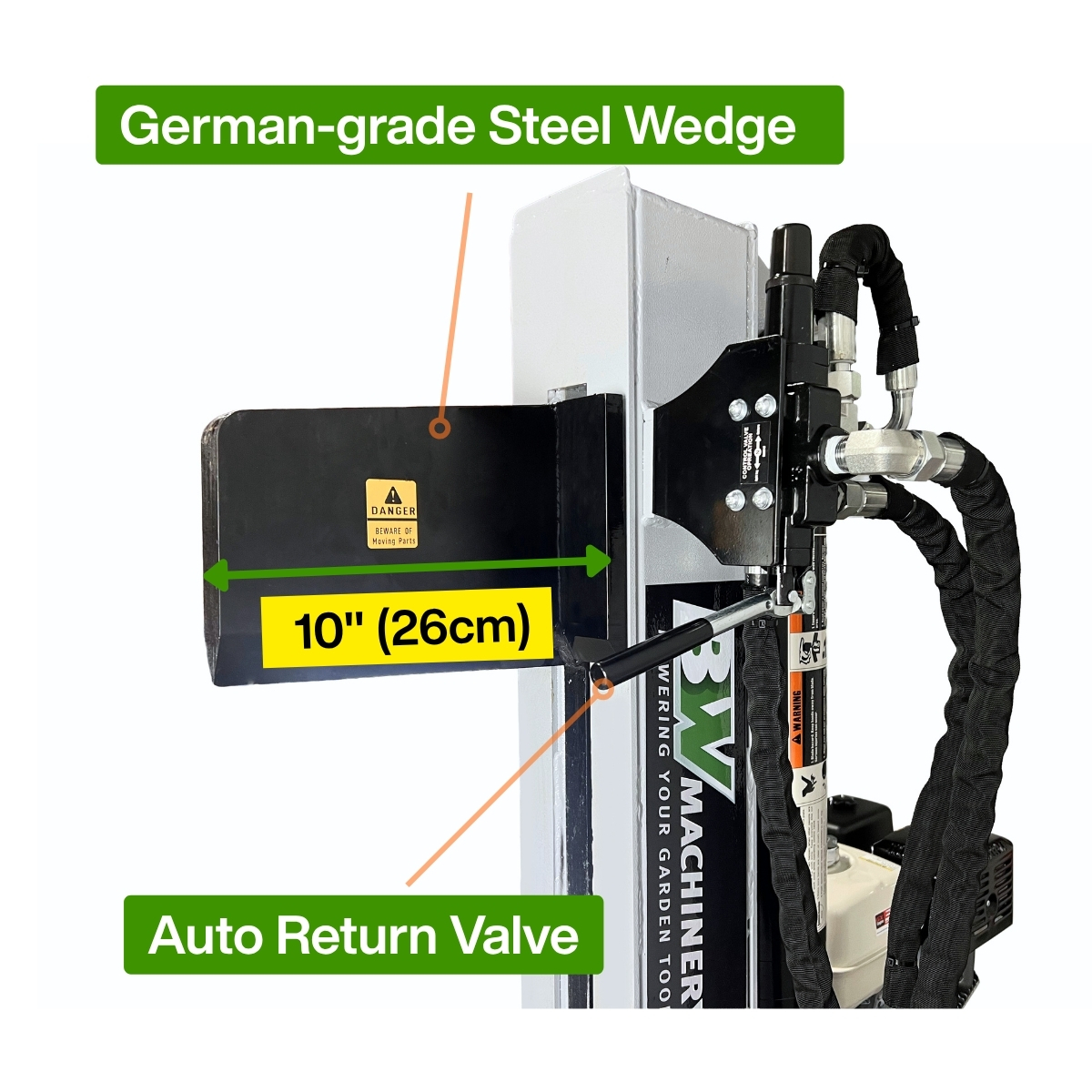

- Auto return valve

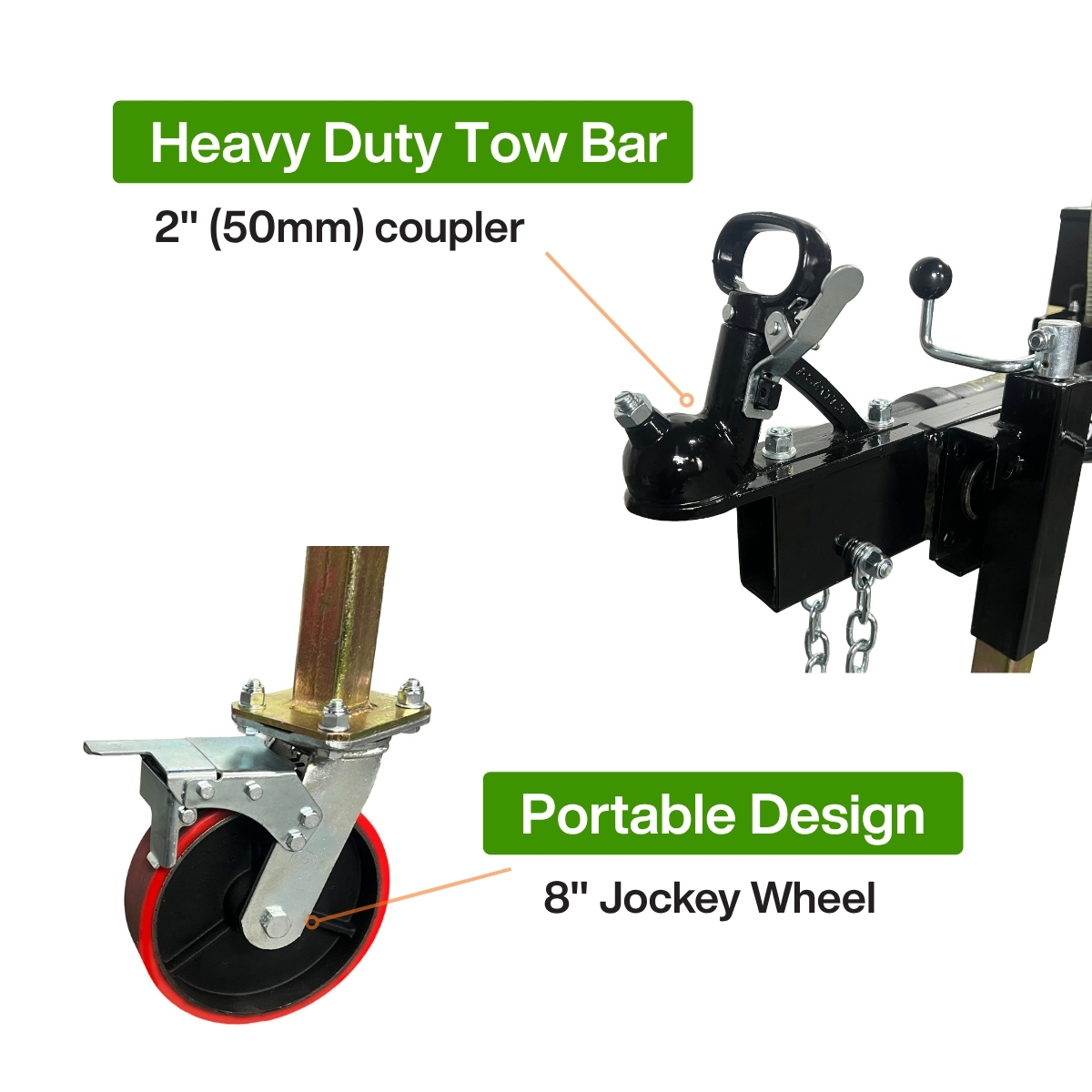

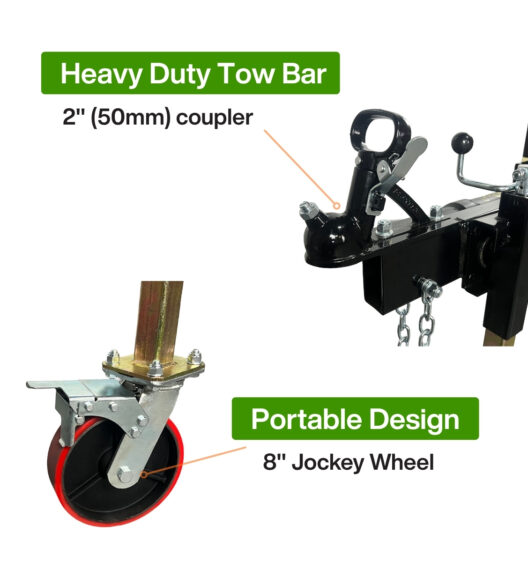

- Heavy duty tow bar with 2″ (50mm) coupler
- Portable design with a 8″ jockey wheel

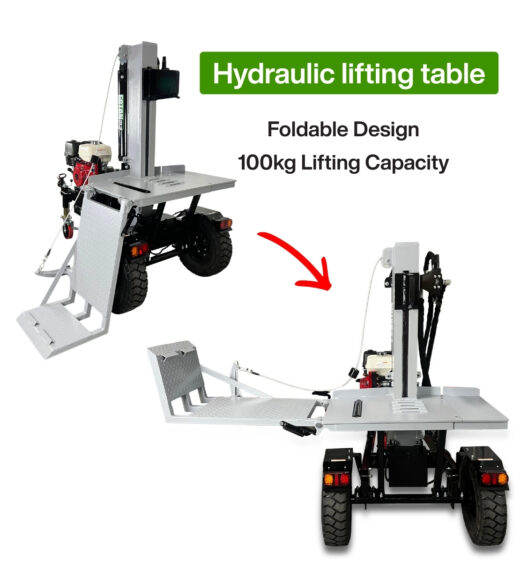

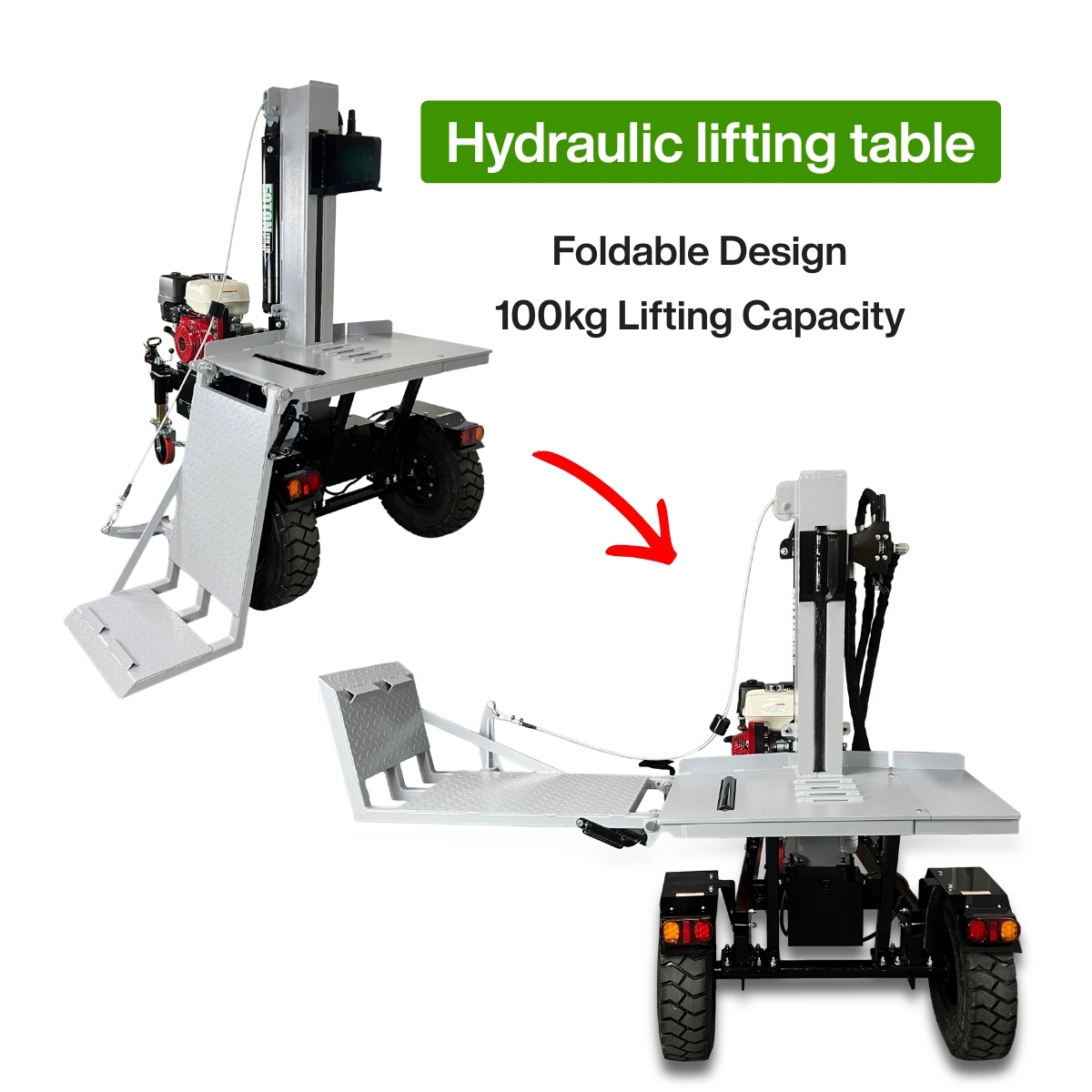

- Comes with a hydraulic lifting table (Capacity: 100kg)

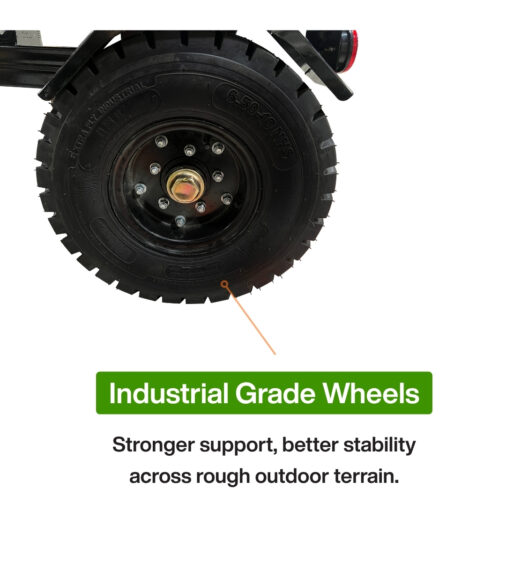

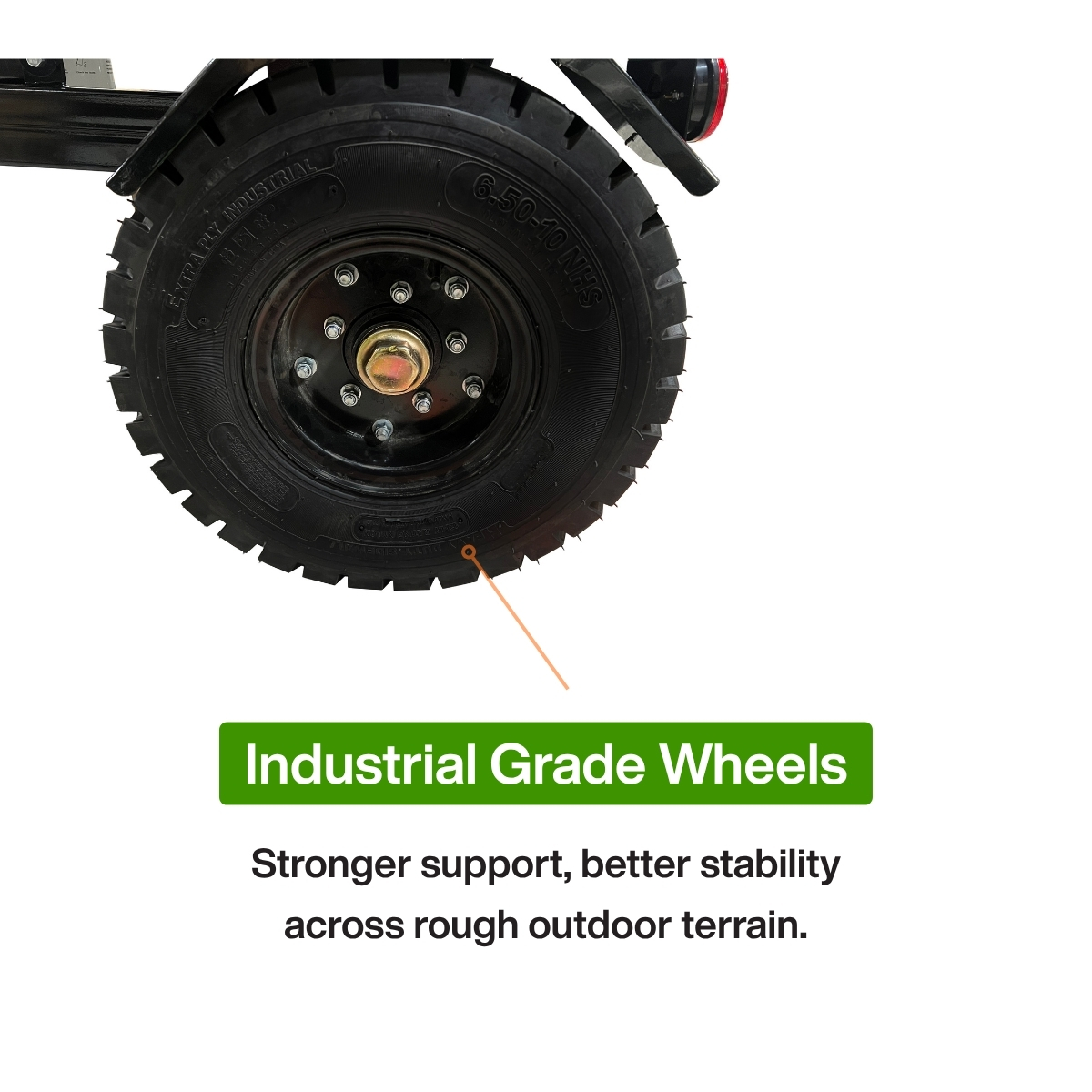

- Heavy duty industrial wheels
- 3 Years Warranty
- 3 Years Engine Warranty
To purchase online:
B.W. Machinery - https://bwmachinery.com.au/product/bwm-lsv50hk-deluxe-series-vertical-log-splitter-with-lifter/

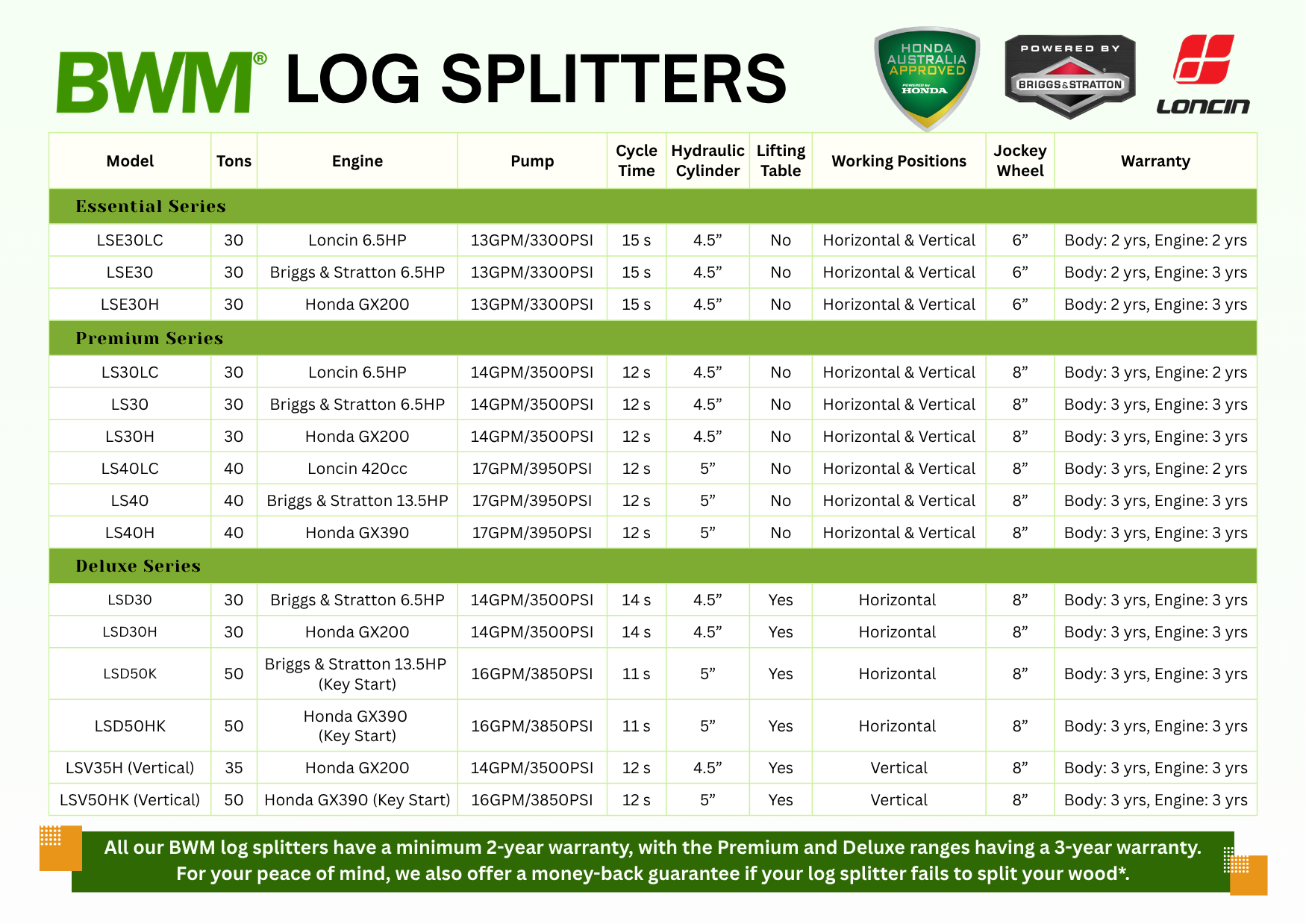

Log Splitters Comparison Chart (Click to Enlarge):
| Model Number: | LSV50HK |
| Splitting force: | 50 Ton |
| Operation: | Vertical |
| Cycle time: | Up to 12 seconds |
| Engine: | Honda GX390 OHV "key start" engine (Honda Australia Approved) |
| Hydraulic pump: | 2 stage pump at 16GPM/3850psi |
| Hydraulic cylinder diameter: | 5" |
| Valve: | Auto return valve |
| Maximum log diameter: | 20″ (508mm) |
| Coupling: | 2" (50mm) with safety chain |
| Jockey wheel: | 8" |
| Fuel volume: | 6.1L |
| Oil volume: | 1.1L (10W30) |
| Petrol type: | Unleaded |
| Start system: | Key Start/Recoil Pull Start |
| Weight(N.W/G.W): | 541KG/597KG |
| Package dimensions (L x W x H): | 2000*880*820mm |

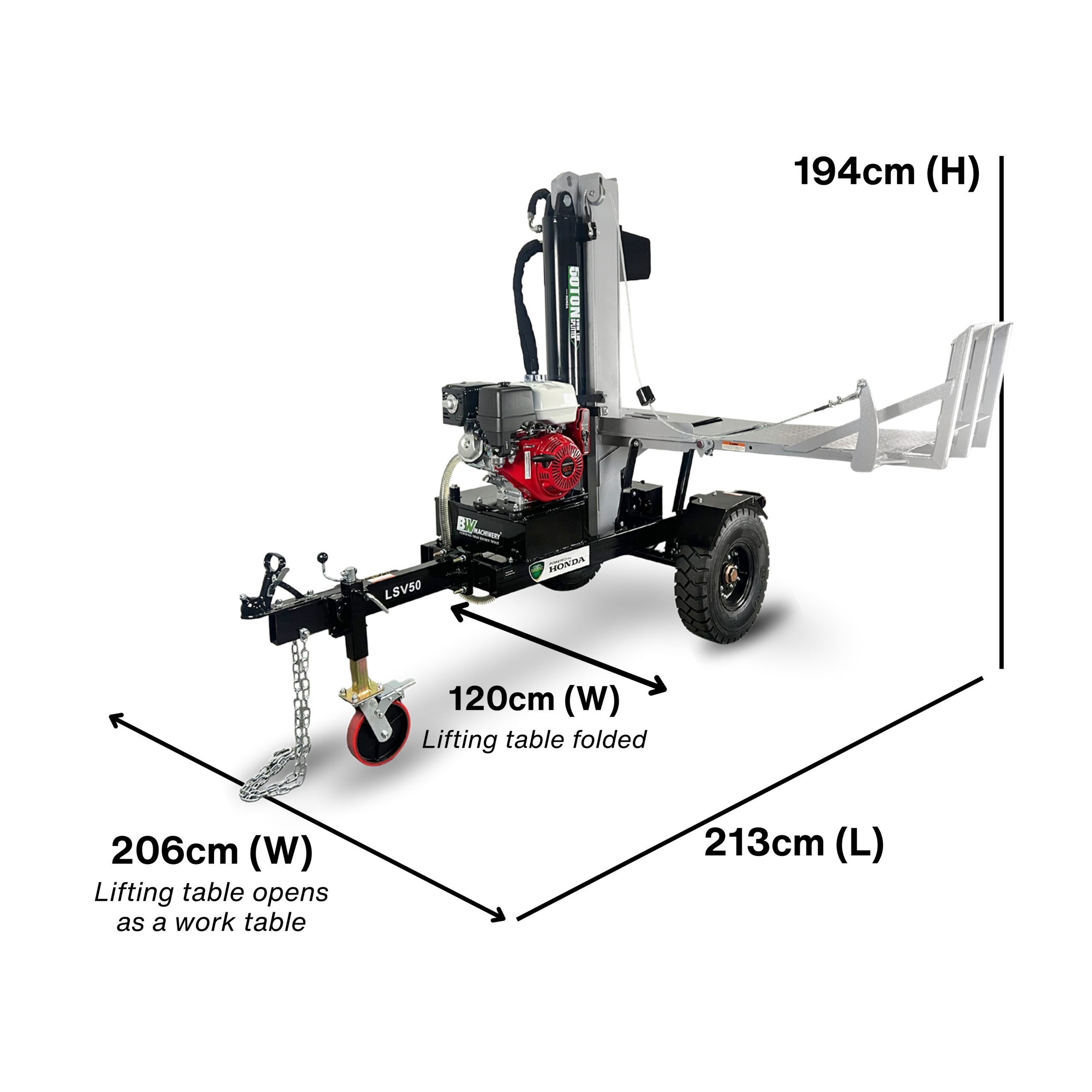

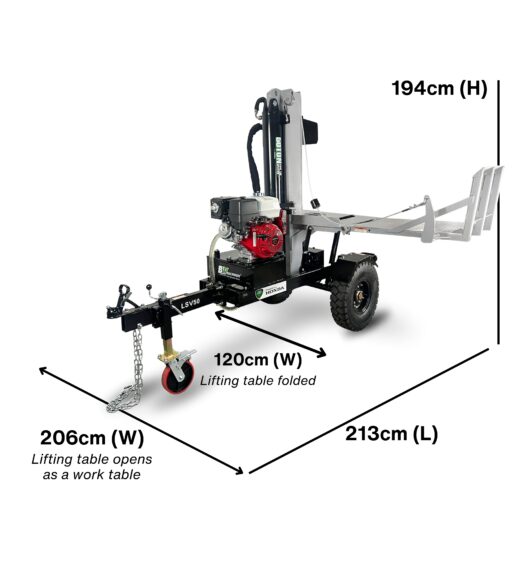

| Display dimensions (L x W x H): | 2130*1200*1940mm (lifting table folded) |
| Display dimensions (L x W x H): | 2130*2060*1940mm (Lifting table opens as a work table) |
| Warranty: | 3 Years Domestic Warranty |
| 1 Year Commercial Warranty | |
| 3 Years Engine Warranty |
