Product Description
Limited Time Offer!
Bonus: Comes with a STIHL MS 172 chainsaw!
(*T&Cs apply. Selected models only. Available from B.W.Machinery stores & website only.)
Bonus Pack: FREE log catcher x 1, Hydraulic Oil (14L) x 1, Engine Oil x 1
FREE SHIPPING! (*T&Cs apply. Delivery area and/or residential surcharges may apply.)
*Assemble service is available for in-store pick up only.
Description:

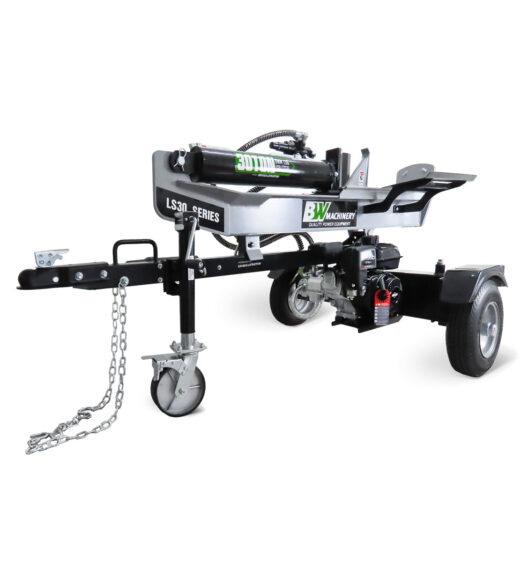

The BWM LS30 Log Splitter is powered by a genuine commercial Briggs and Stratton 6.5HP OHV engine and built to perform in demanding applications. Featuring a 2-stage, (14GPM/3500psi) pump for maximum speed without loss of pressure and is designed to split in both vertical and horizontal positions, for logs up to 26″ in diameter. A convenient lift handle provides added control for easier and safer transitions from vertical to horizontal positions while the high-performance wedge makes splitting easier and the log cradle moves split wood more efficiently.
All our BWM log splitters have a minimum 2 years warranty, with premium range (LS30/H/LC, LS40/H/LC) having a 3 years warranty. For your peace of mind, we offer money back guarantee if your log splitter fails to split your wood*
Feature:
- Powered by commercial Briggs and Stratton 6.5HP OHV engine
- 30 tons splitting force
- Working in both horizontal and vertical positions
- Split logs up to 26″ (660mm) in diameter
- 2 stage pump at 14GPM/3500psi
- Up to 12 seconds cycle time
- Auto return valve
- Heavy duty tow bar with 50mm coupler
- Portable design with a 8″ jockey wheel
- 3 Years Warranty
- 3 Years Engine Warranty
To purchase online:
B.W. Machinery - https://bwmachinery.com.au/product/bwm-ls30-log-splitter/

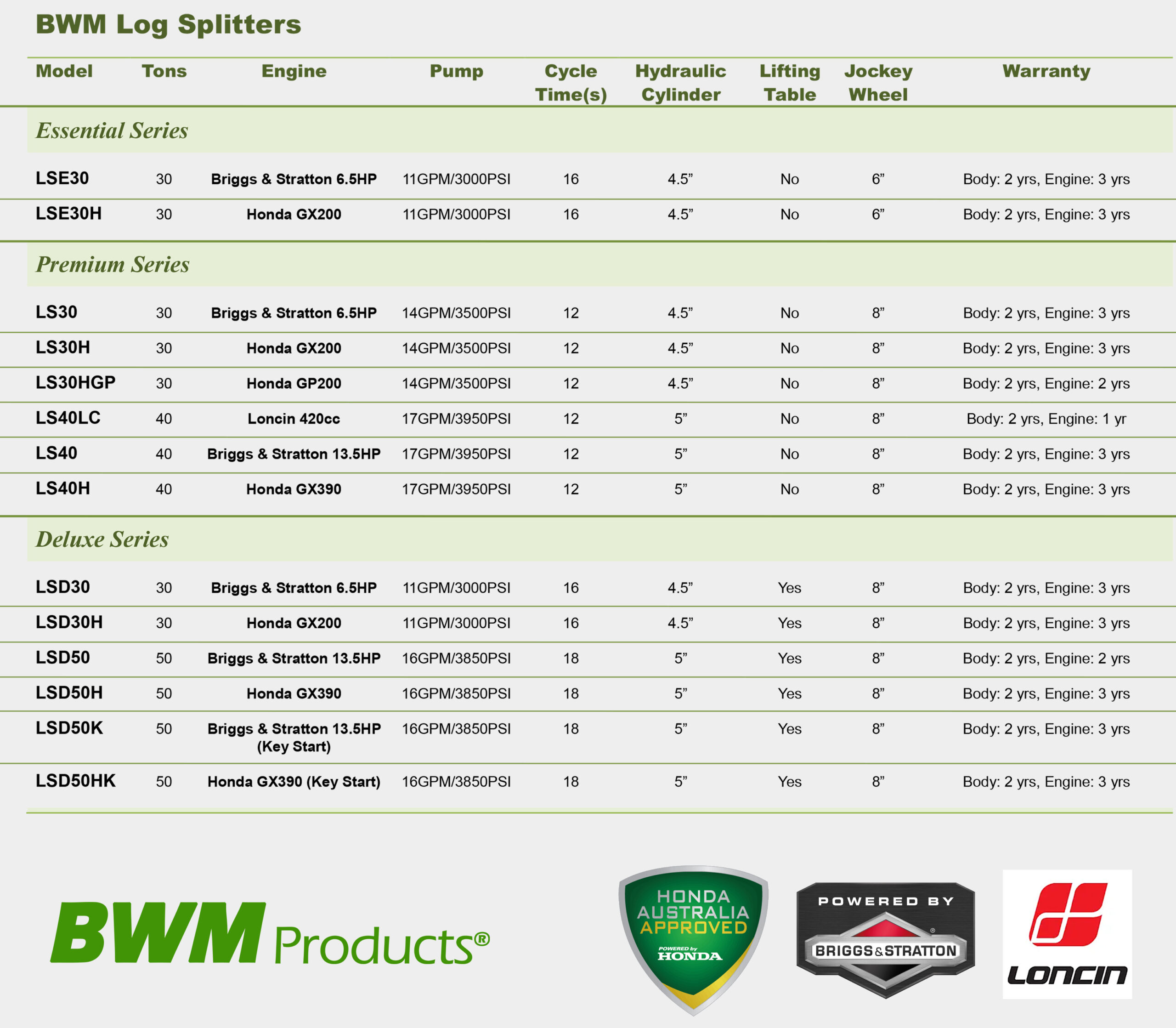

Comparison Chart (click to enlarge)
Specification
| Splitting force | 30 Ton |
| Operation | Horizontal and vertical |
| Cycle time | Up to 12 seconds |
| Engine | Briggs & Stratton 6.5hp OHV engine |
| Hydraulic pump | 2 stage pump at 14GPM/3500psi |
| Hydraulic cylinder diameter | 4.5" |
| Valve | Auto return valve |
| Maximum log diameter | 26" (660mm) |
| Coupling | 50mm with safety chain |
| Jockey wheel | 8" |
| Fuel volume | 3.6L |
| Oil volume | 0.6L (SAE30) |
| Petrol type | Unleaded |
| Start system | Recoil pull start |
| Weight(N.W/G.W) | 229KG/259KG |
| Package dimensions | 1840*740*500mm |
| Display dimensions (L x H x W) | 2290*1230*1050mm |
| Warranty | 3 Years Domestic Warranty |
| 3 Years Engine Warranty |
Video gallery
User Manual
BWM LS30 Log Splitter Manual (no jockey wheel,-2022)
BWM LS30 Log Splitter Manual (w jockey wheel 2023-current)
No jockey wheel version: Assembly instruction from Page 9 to 19.
Jockey wheel version: Assembly instruction from Page 7 to 12.
Need more information please contact us on 1300 454 585.
Spare parts list
BWM LS30 Log Splitter Parts List (no jocky wheel, -2022)
BWM LS30 Log Splitter Parts List (Jockey Wheel, 2023-current)
Need more information please contact us on 1300 454 585.
