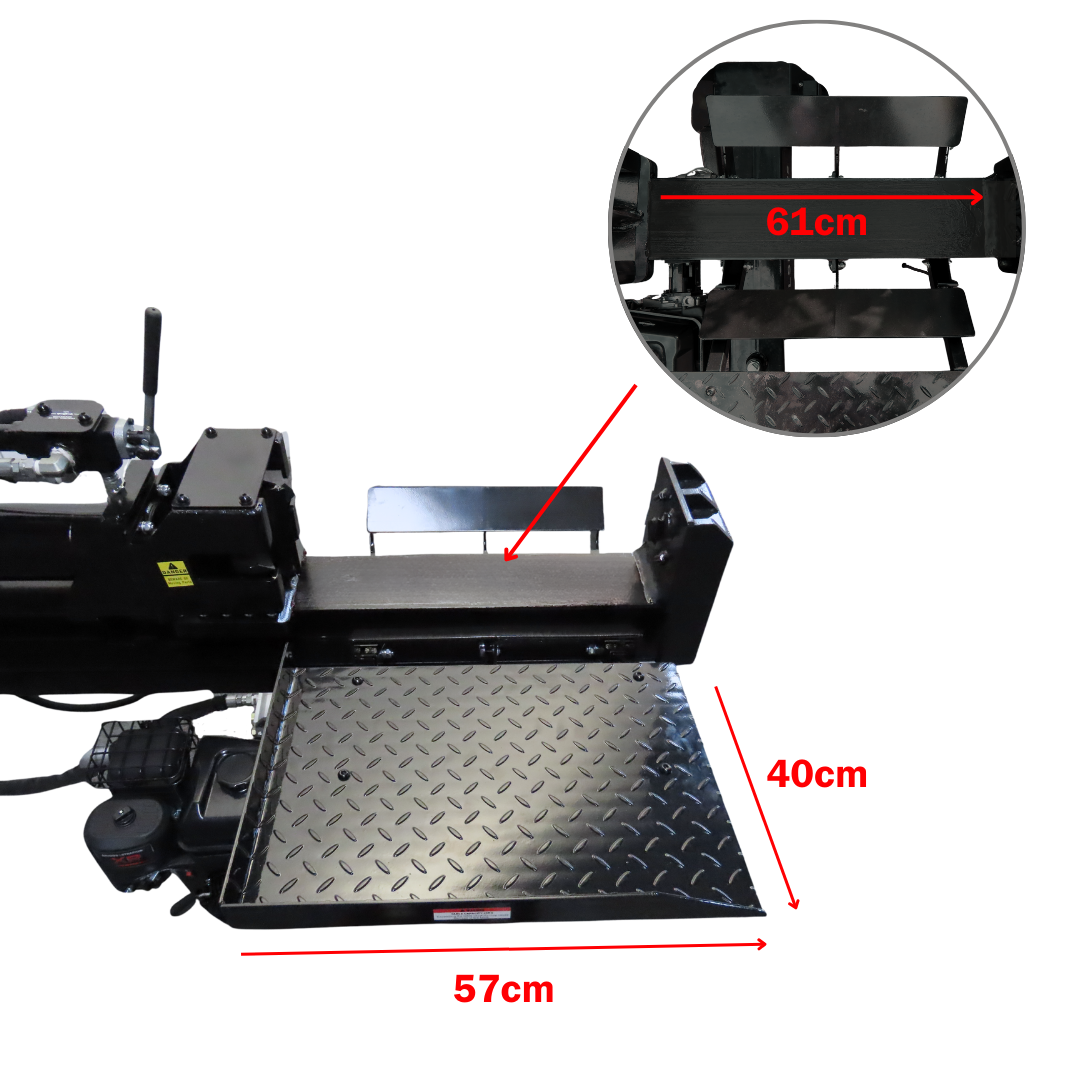

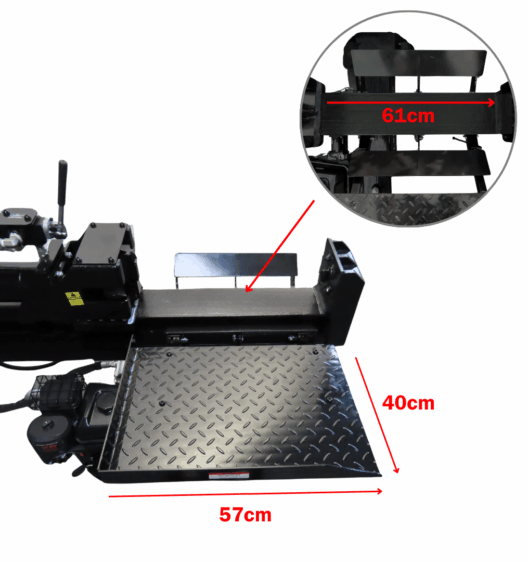

Bonus Pack: FREE log table x 1, Hydraulic Oil (12L) x 1, Engine Oil (600ml) x 1
*Assemble service is available for in-store pick up only.
Description:

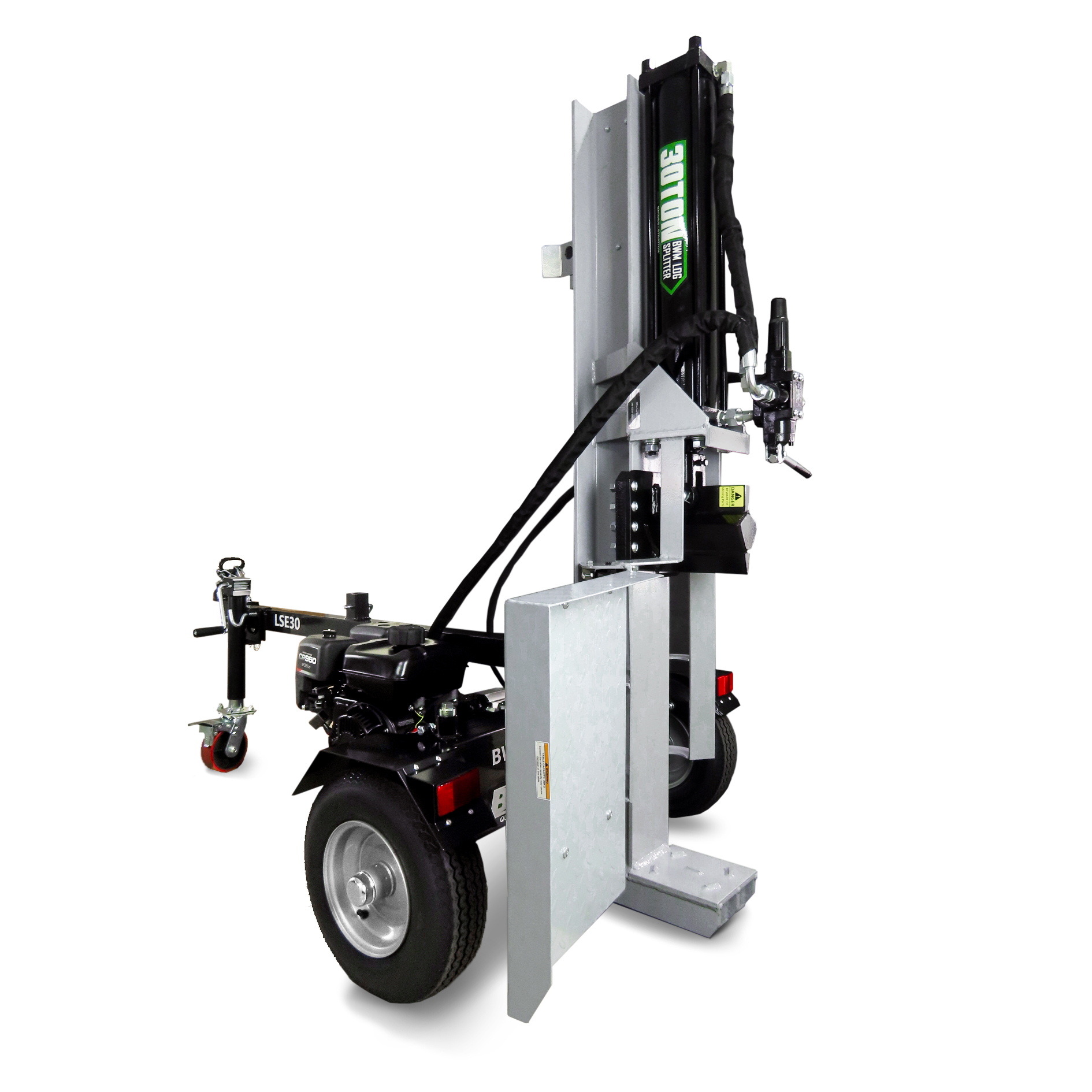

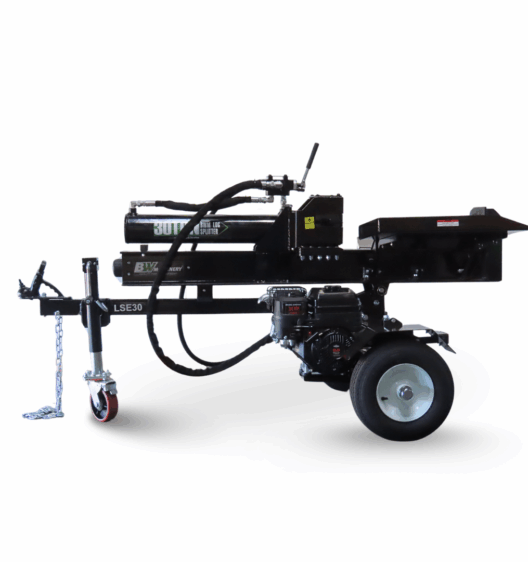

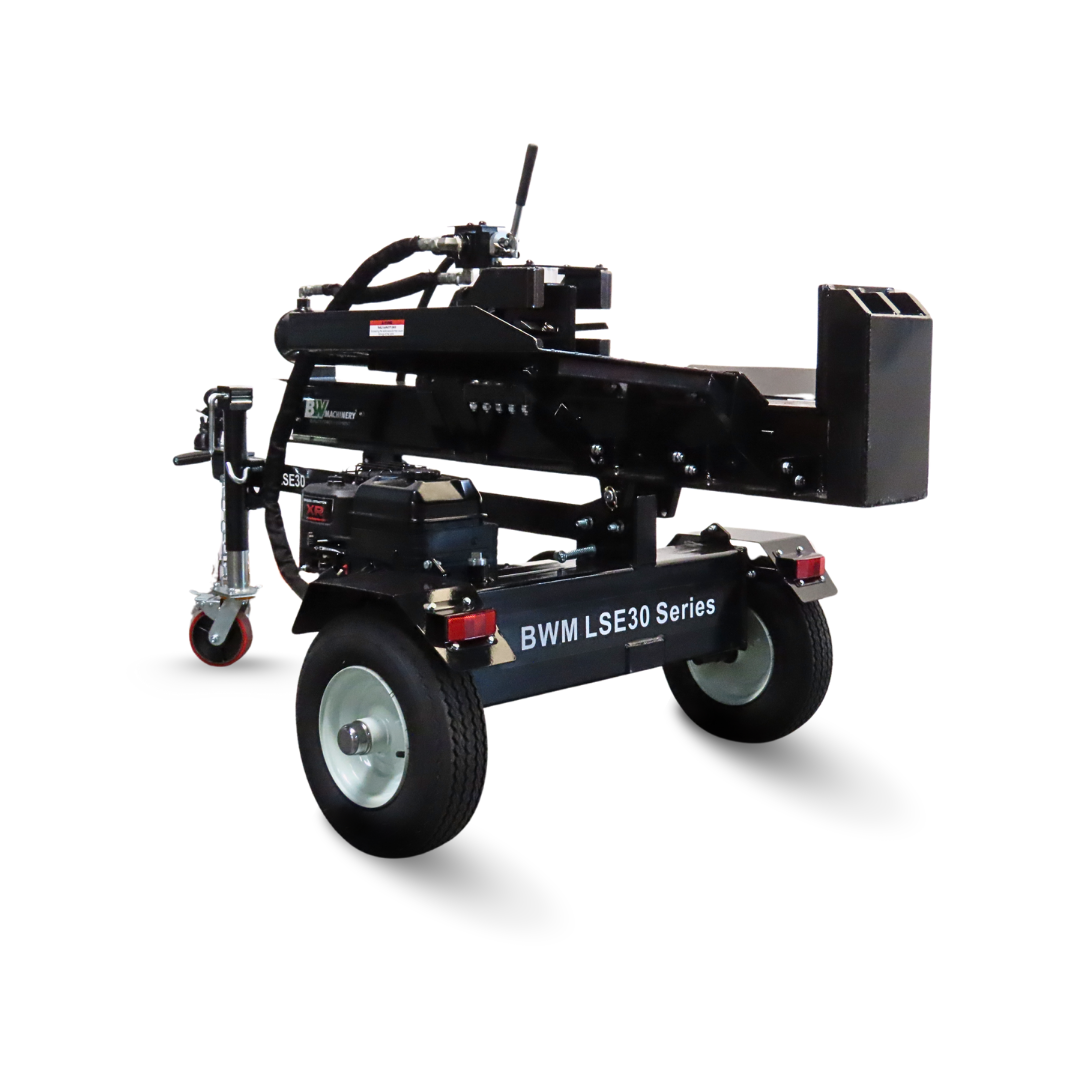

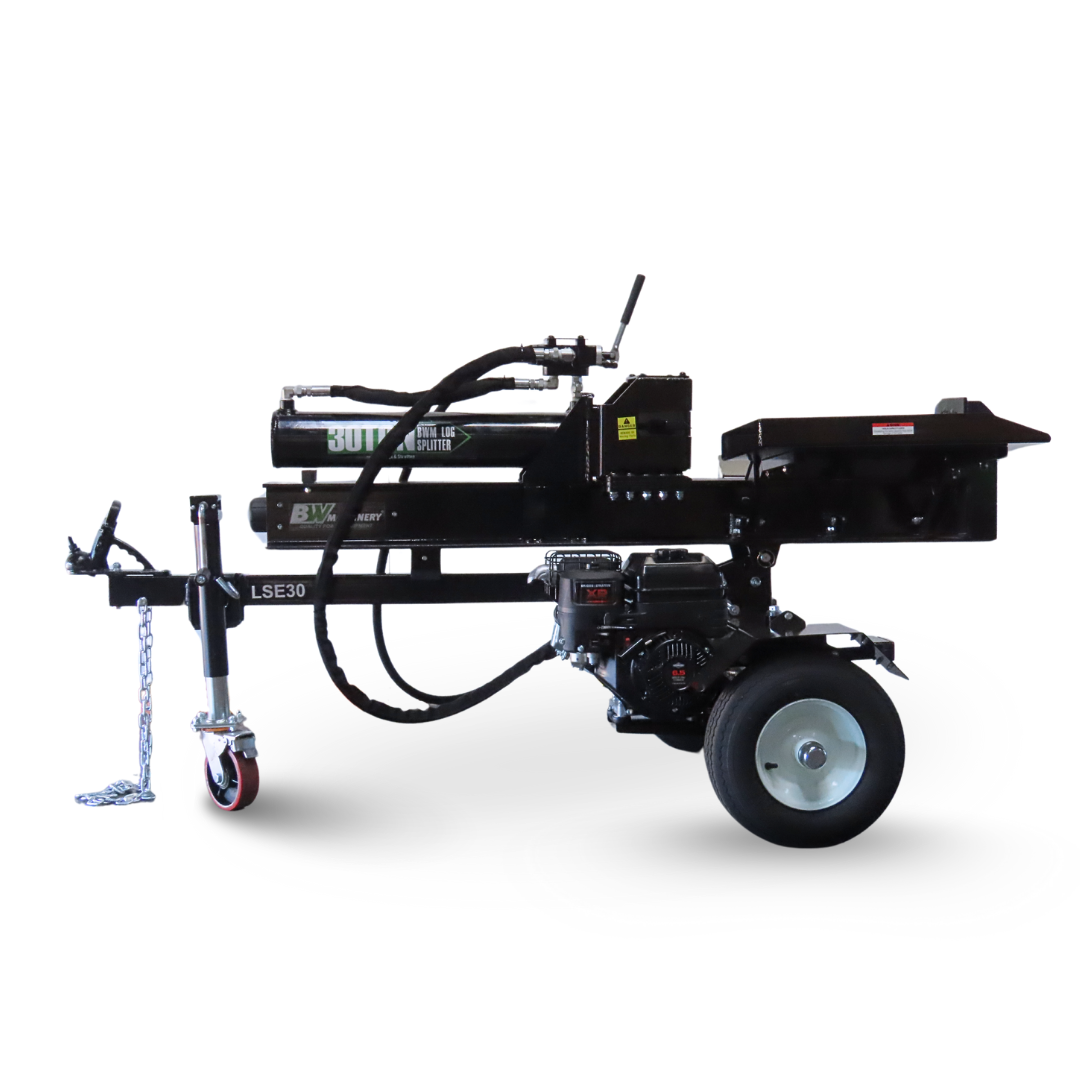

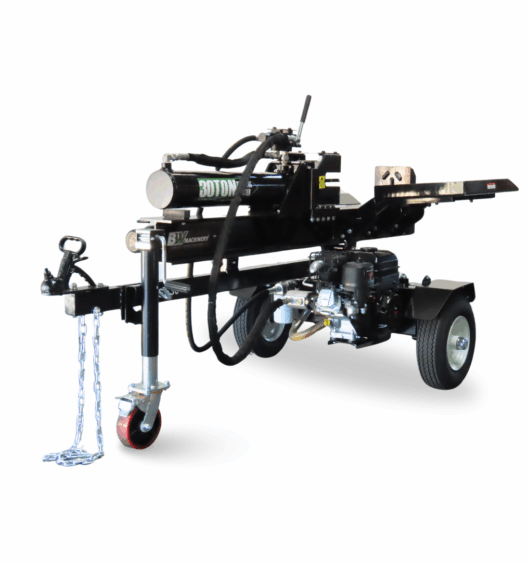

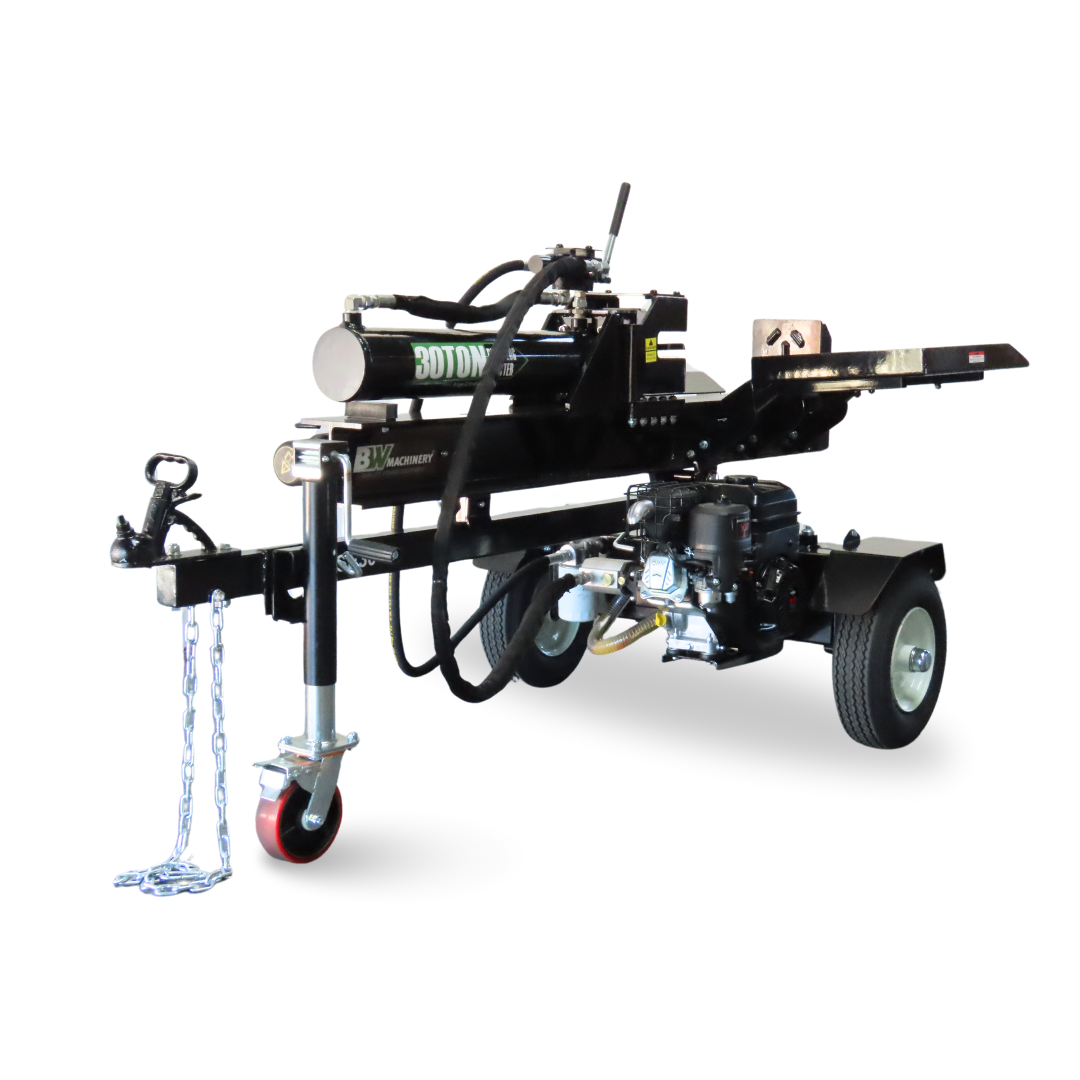

The BWM LSE30 Log Splitter is powered by a genuine commercial Briggs and Stratton 6.5HP OHV engine and built to perform in demanding applications. Featuring a 2-stage, (11GPM/3000psi) pump for maximum speed without loss of pressure and is designed to split in both vertical and horizontal positions. The BWM LSE30 log splitter is fitted with a 6″ jockey wheel for smooth transportation.
All our BWM log splitters have a 2 years warranty. For your peace of mind, we offer money back guarantee if your log splitter fails to split your wood.
Features:
- Powered by commercial Briggs and Stratton 6.5HP OHV engine
- 30 tons splitting force

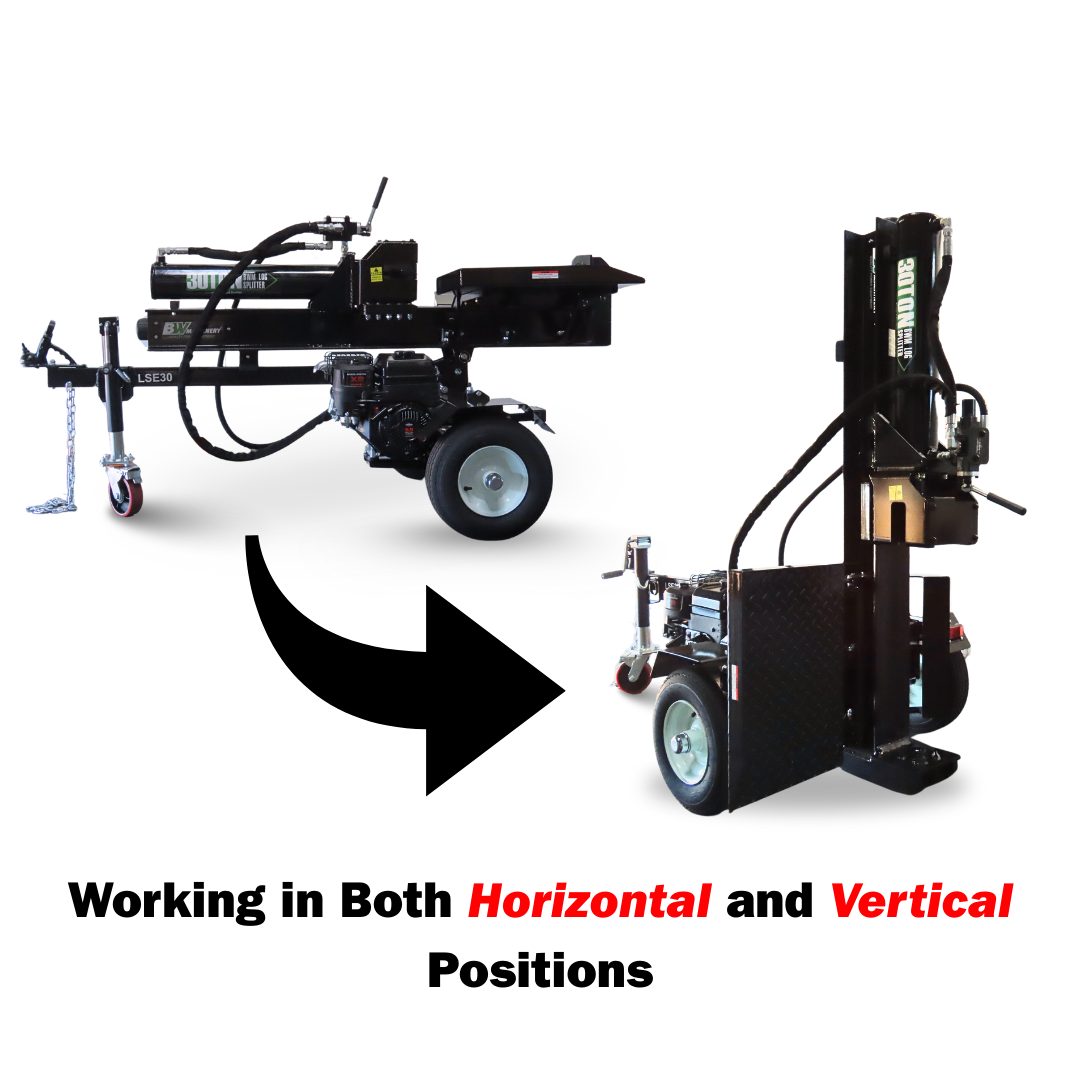

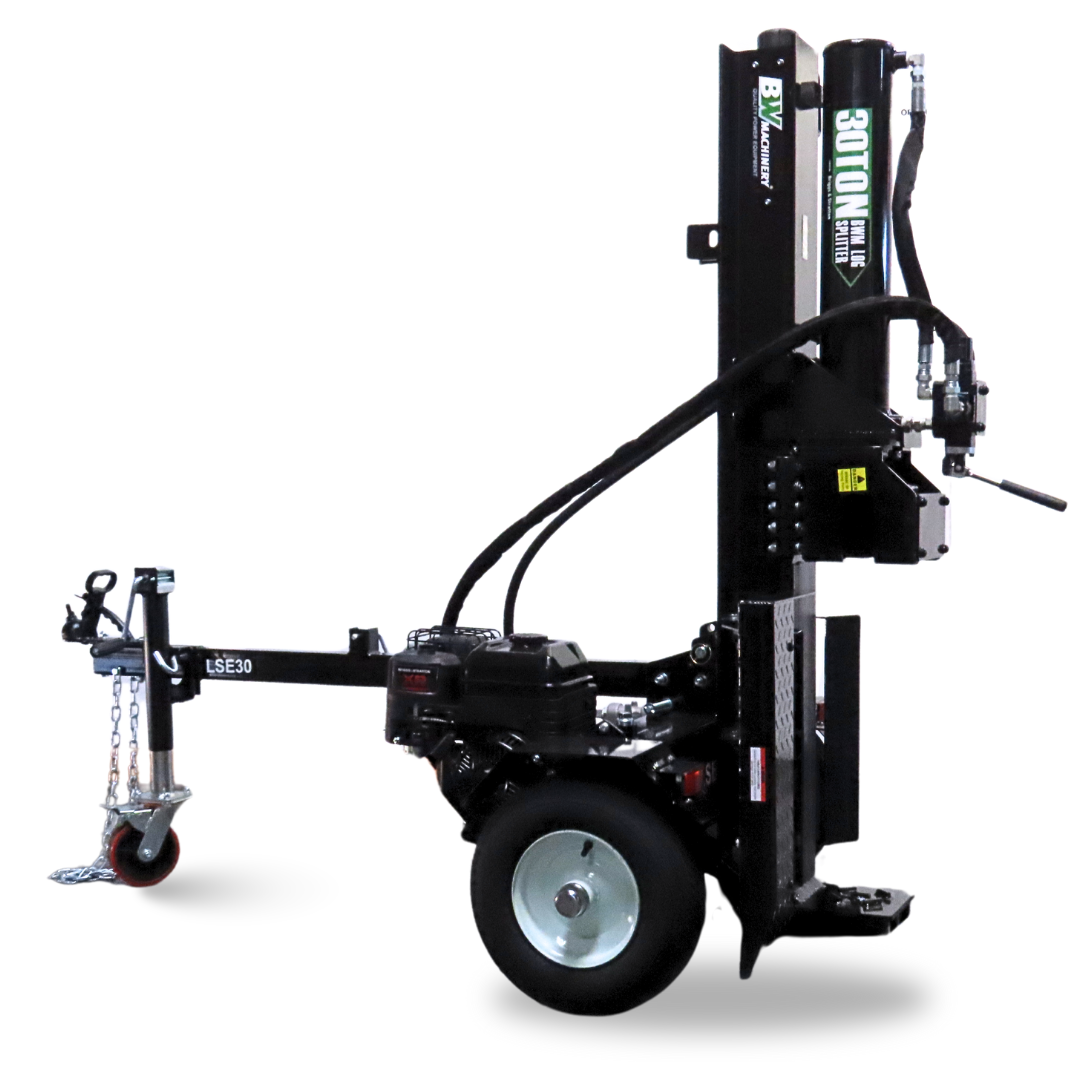

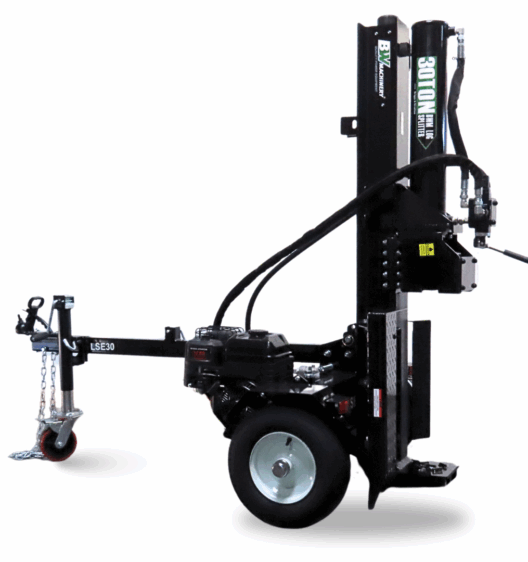

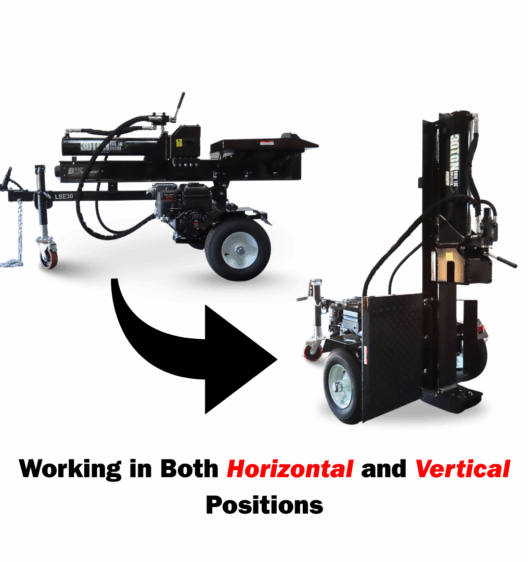

- Working in both horizontal and vertical positions
- Split logs up to 20″ (508mm) in diameter

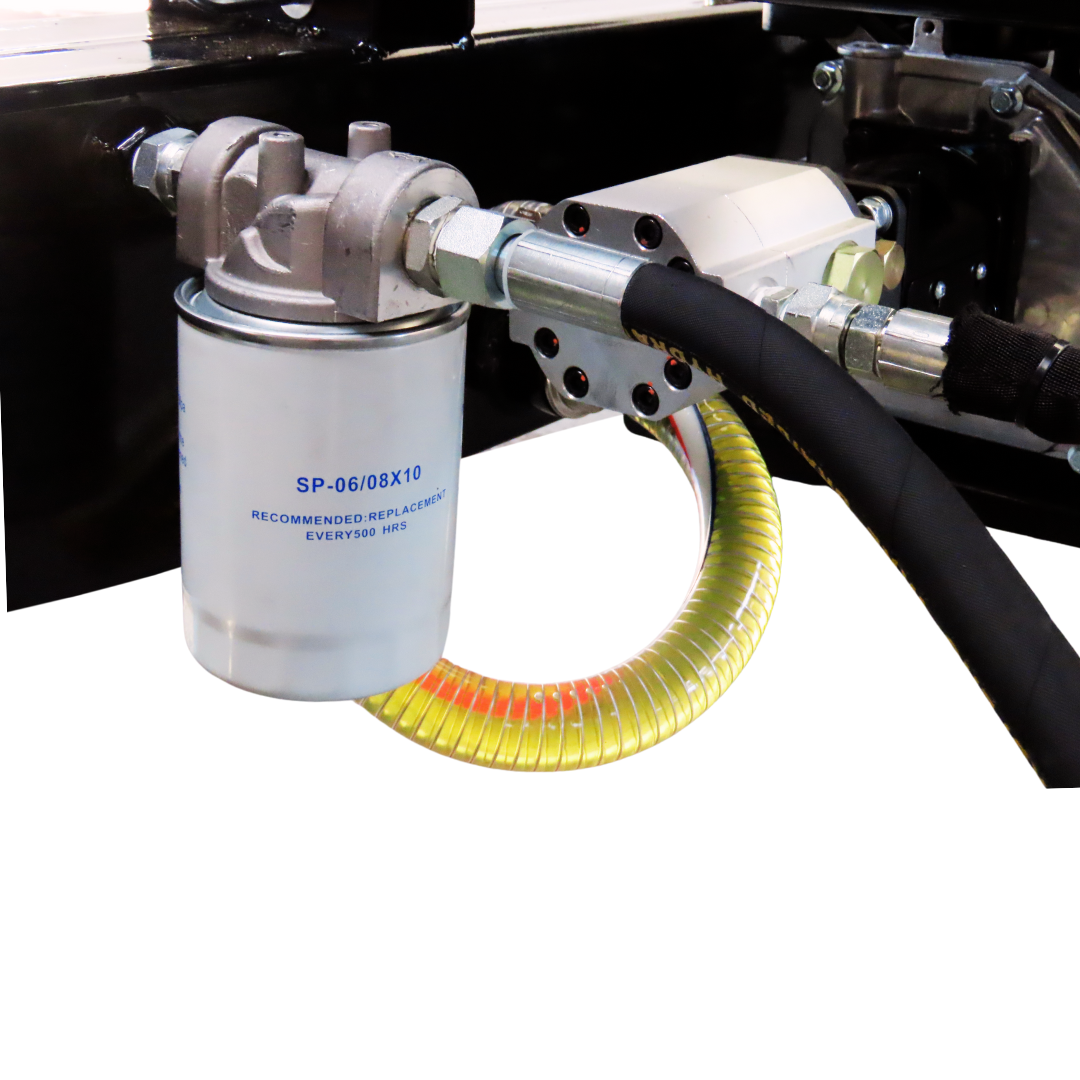

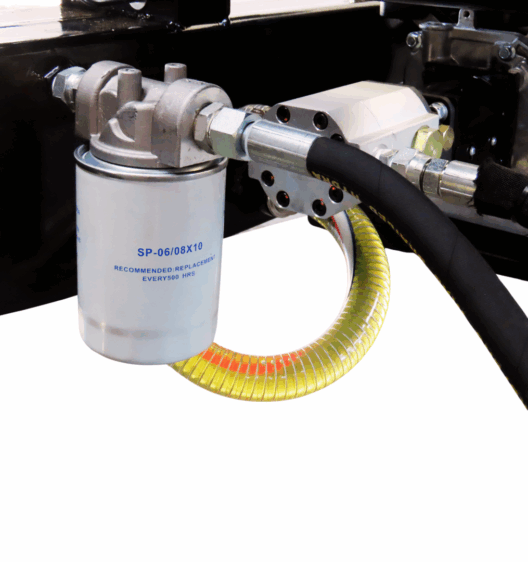

- 2 stage pump at 11GPM/3000psi
- 16 seconds cycle time

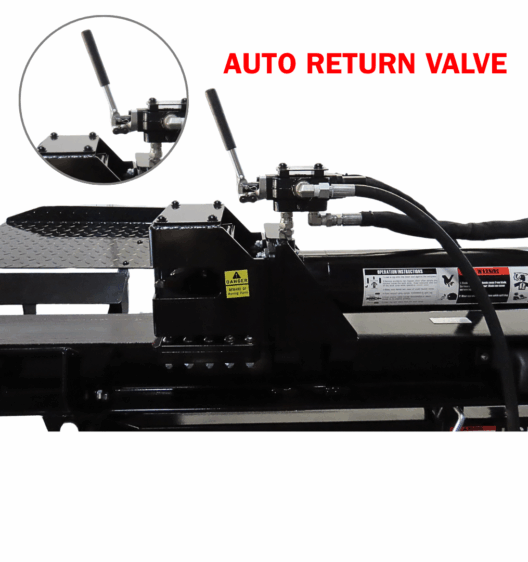

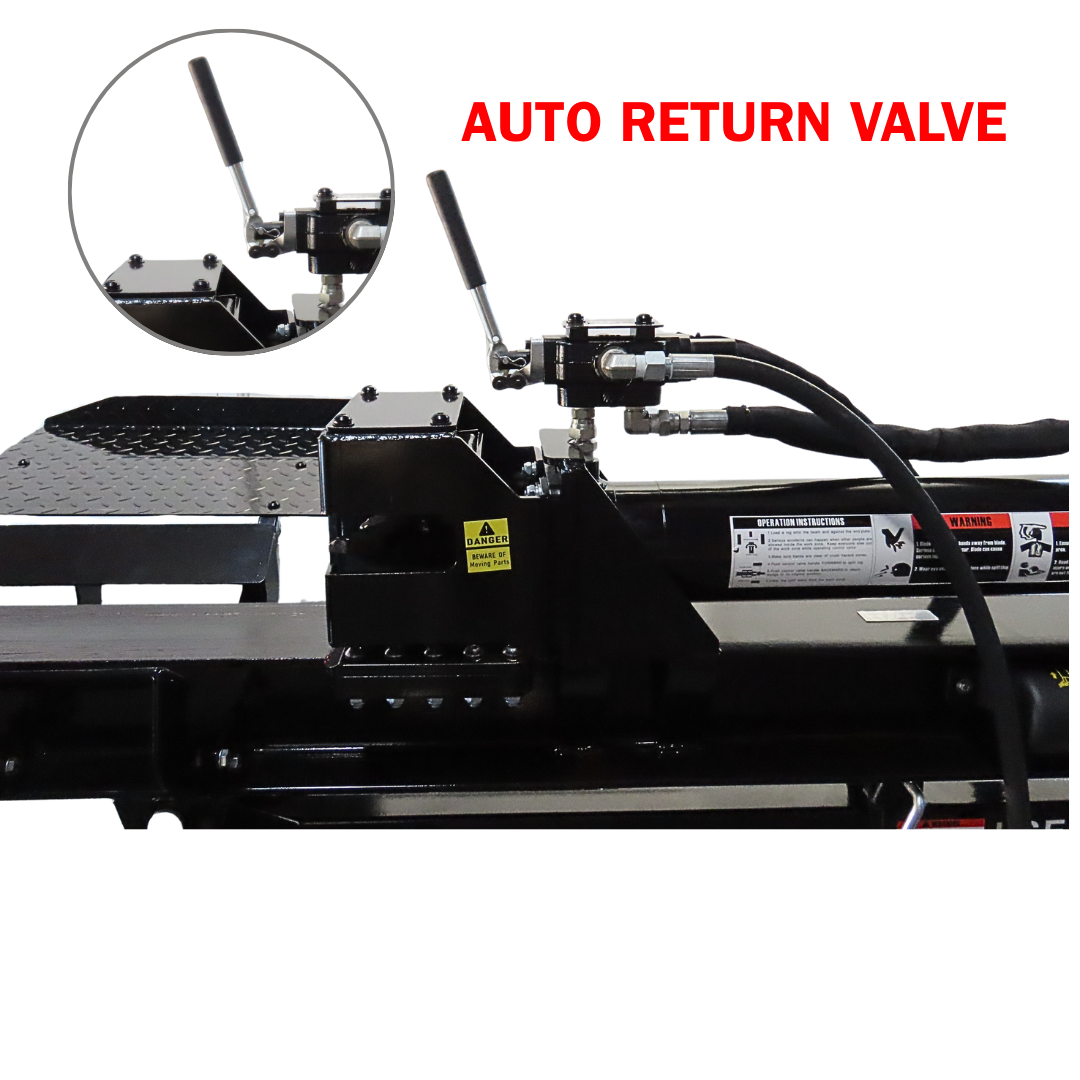

- Auto return valve
- Heavy duty tow bar with 2″ (50mm) coupler
- Portable design with a 6″ jockey wheel
- 2 Years Warranty
- 3 Years Engine Warranty
To purchase online:
B.W. Machinery - https://bwmachinery.com.au/product/bwm-lse30-essential-series-log-splitter/
Comparison Chart (click to enlarge)
Model Number: | LSE30 |
Splitting force: | 30 Ton |
Operation: | Horizontal and vertical |
Cycle time: | Up to 16 seconds |
Engine: | Briggs & Stratton 6.5HP OHV engine |
Hydraulic pump: | 2 stage pump at 11GPM/3000psi |
Hydraulic cylinder diameter: | 4.5" |
Valve: | Auto return valve |
Maximum log diameter: | 20" (508mm) |
Coupling: | 2" (50mm) with safety chain |
Jockey wheel: | 6" |
Fuel volume: | 3.6L |
Oil volume: | 0.6L (SAE30) |
Petrol type: | Unleaded |
Start system: | Recoil pull start |
Weight(N.W/G.W): | 253KG/280KG |
Package dimensions: | 1930*505*800mm |

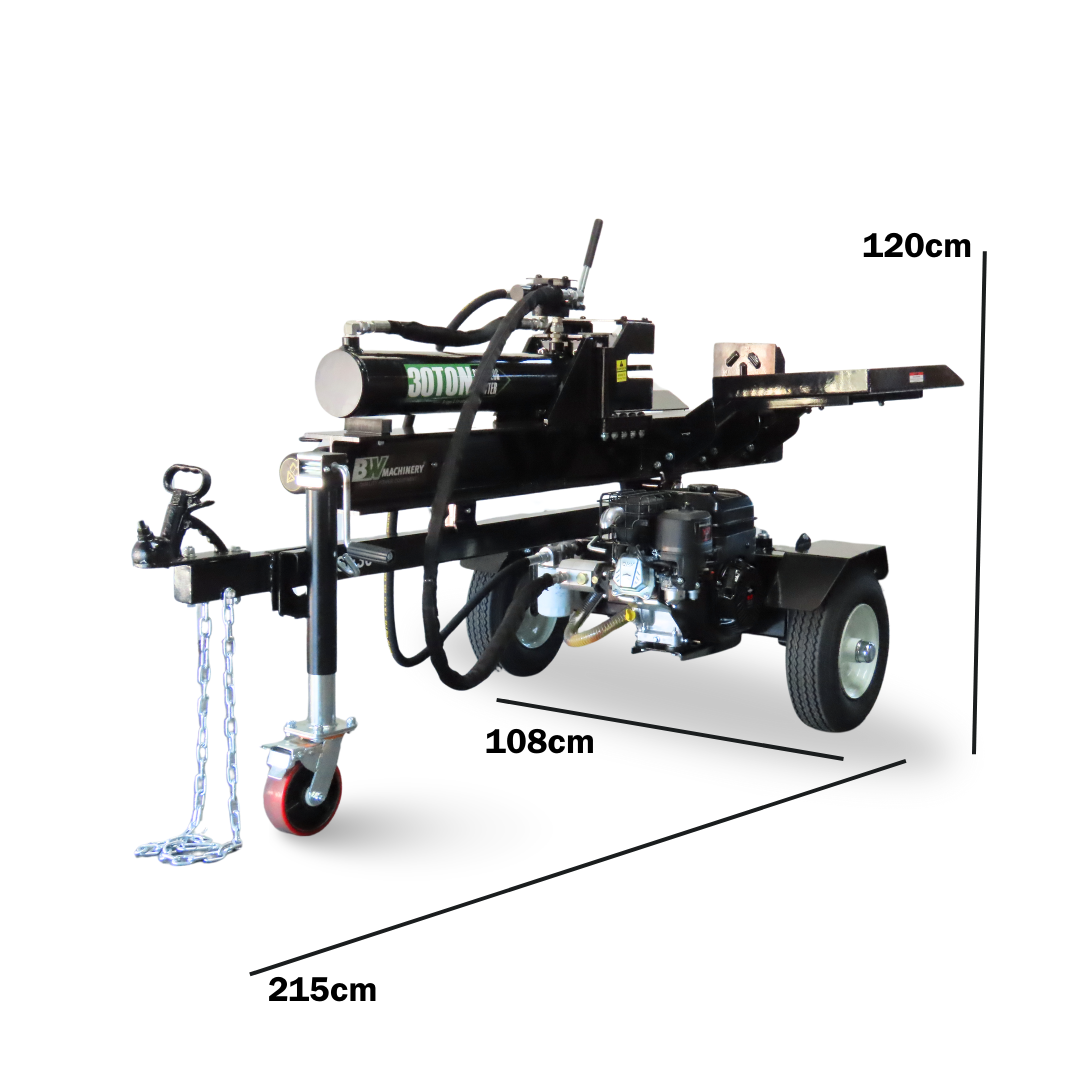

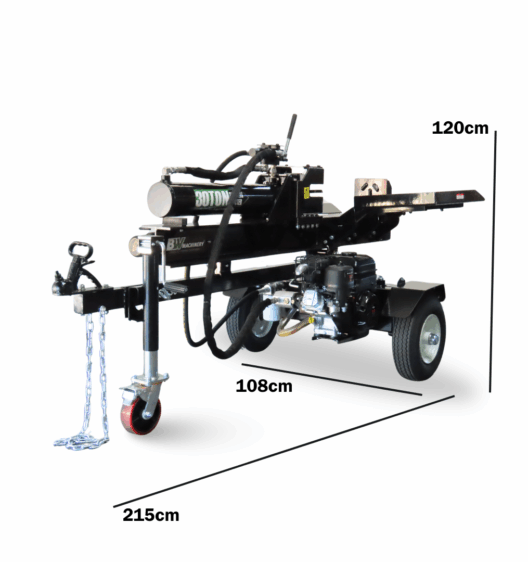

Display dimensions (L x H x W): | 2180*1050*1130mm |
Warranty: | 2 Years Domestic Warranty |
3 Years Engine Warranty |
