Bonus Pack: Hydraulic Oil (16L) x 1, Engine Oil (1L) x 2
*Assemble service is available for in-store pick up only.
Description:

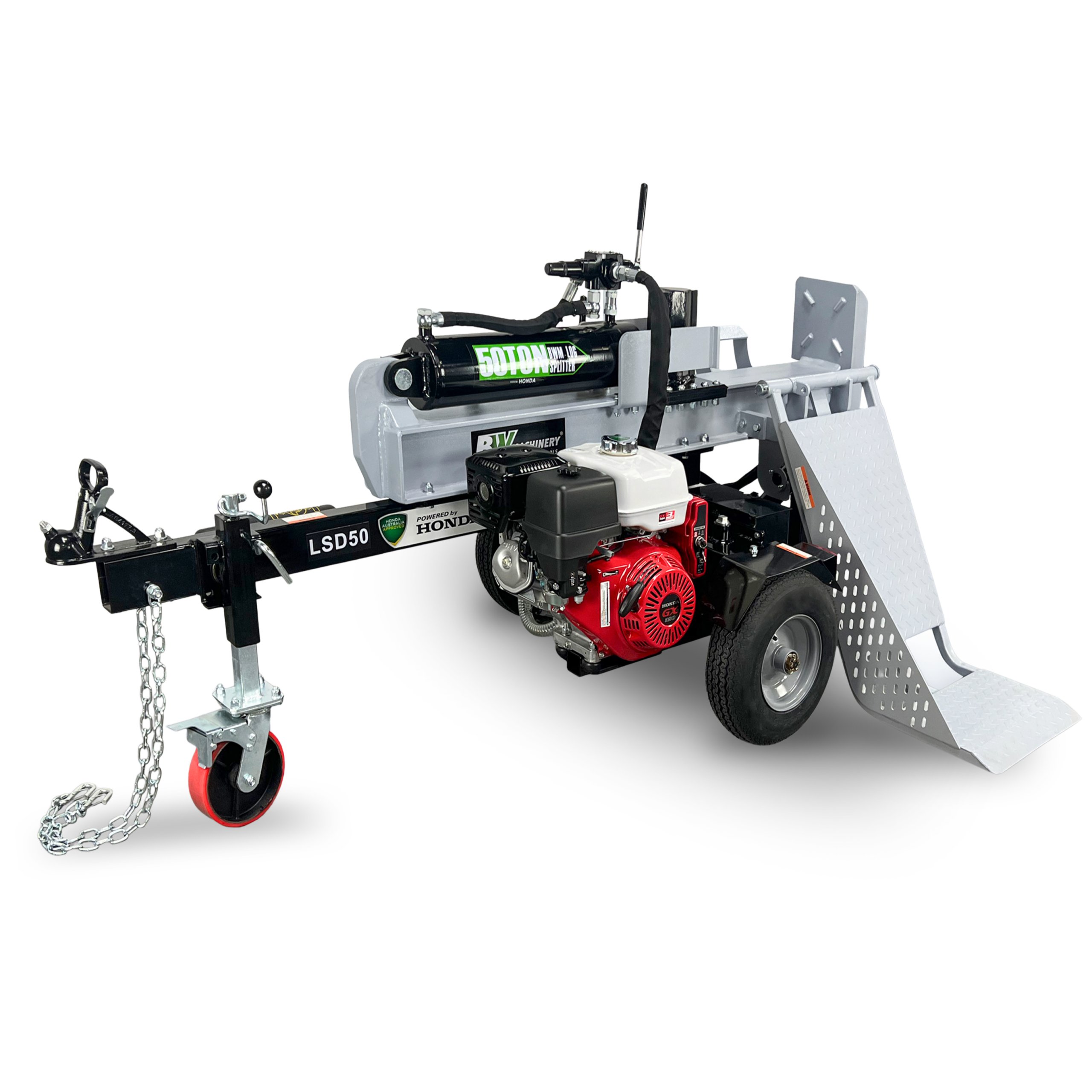

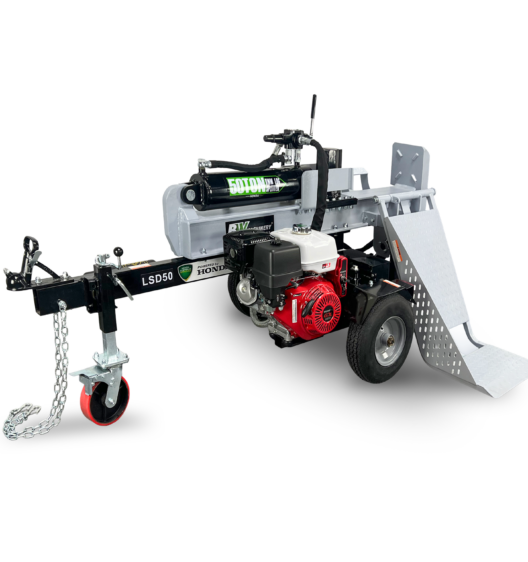

The BWM LSD50HK log splitter comes with everything you need. It is powered by a genuine commercial Honda GX390 OHV engine (Honda Australia Approved), with a key start function, and built to perform in demanding applications. Featuring a 2-stage, (16GPM/3850psi) pump for maximum speed without loss of pressure and is designed to split in the horizontal position. The BWM LSD50HK log splitter is fitted with a hydraulic lifting table to ease your back and arms as well as an 8″ jockey wheel for smooth transportation.
All our BWM log splitters have a 2 years warranty. For your peace of mind, we offer money back guarantee if your log splitter fails to split your wood*.
Features:

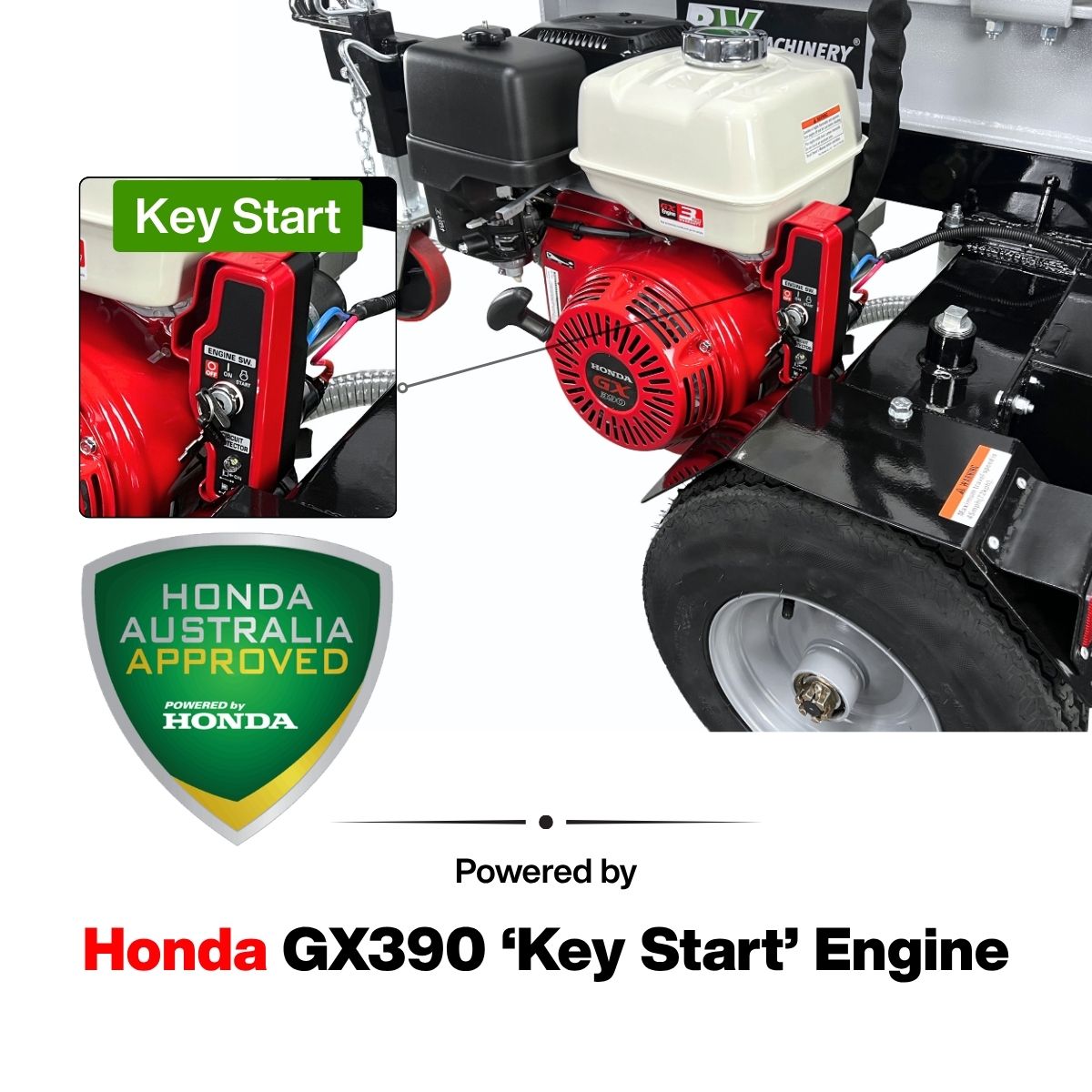

- Powered by commercial Honda GX390 OHV “key start” engine (Honda Australia Approved)
- 50 tons splitting force
- Split logs up to 20″ (508mm) diameter
- 2 stage pump at 16GPM/3850psi
- 18 seconds cycle time
- Auto return valve
- Heavy duty tow bar with 2″ (50mm) coupler
- Portable design with an 8″ jockey wheel
- Comes with a hydraulic lifting table
- 2 Years Warranty
- 3 Years Engine Warranty
To purchase online:
B.W. Machinery -https://bwmachinery.com.au/product/bwm-lsd50hk-deluxe-series-log-splitter-with-lifter/
Comparison Chart (click to enlarge)
Model Number: | LSD50HK |
Splitting force: | 50 Ton |
Operation: | Horizontal |
Cycle time: | Up to 18 seconds |
Engine: | Honda GX390 OHV "key start" engine (Honda Australia Approved) |
Hydraulic pump: | 2 stage pump at 16GPM/3850psi |
Hydraulic cylinder diameter: | 5" |
Valve: | Auto return valve |
Maximum log diameter: | 20" (508mm) |
Coupling: | 2" (50mm) with safety chain |
Jockey wheel: | 8" |
Lifting Table: | Yes |
Fuel volume: | 6.1L |
Oil volume: | 1.1L (10W30) |
Petrol type: | Unleaded |
Start system: | Recoil pull start |
Weight(N.W/G.W): | 325KG/380KG |
Package dimensions (packed in two boxes): | (Box 1) 1730*520*790mm (340KG) |
(Box 2) 1060*515*250mm (40KG) | |

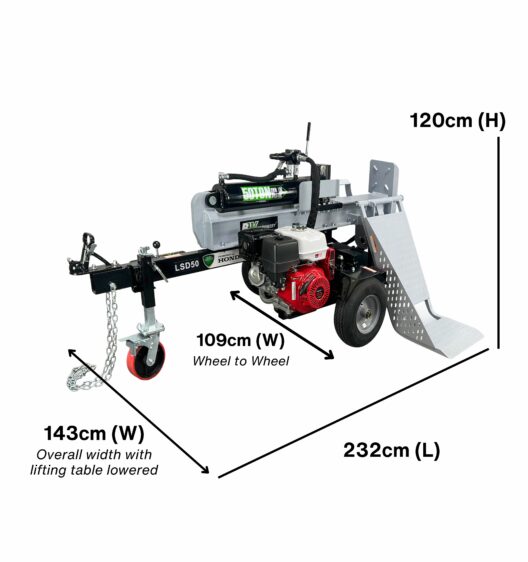

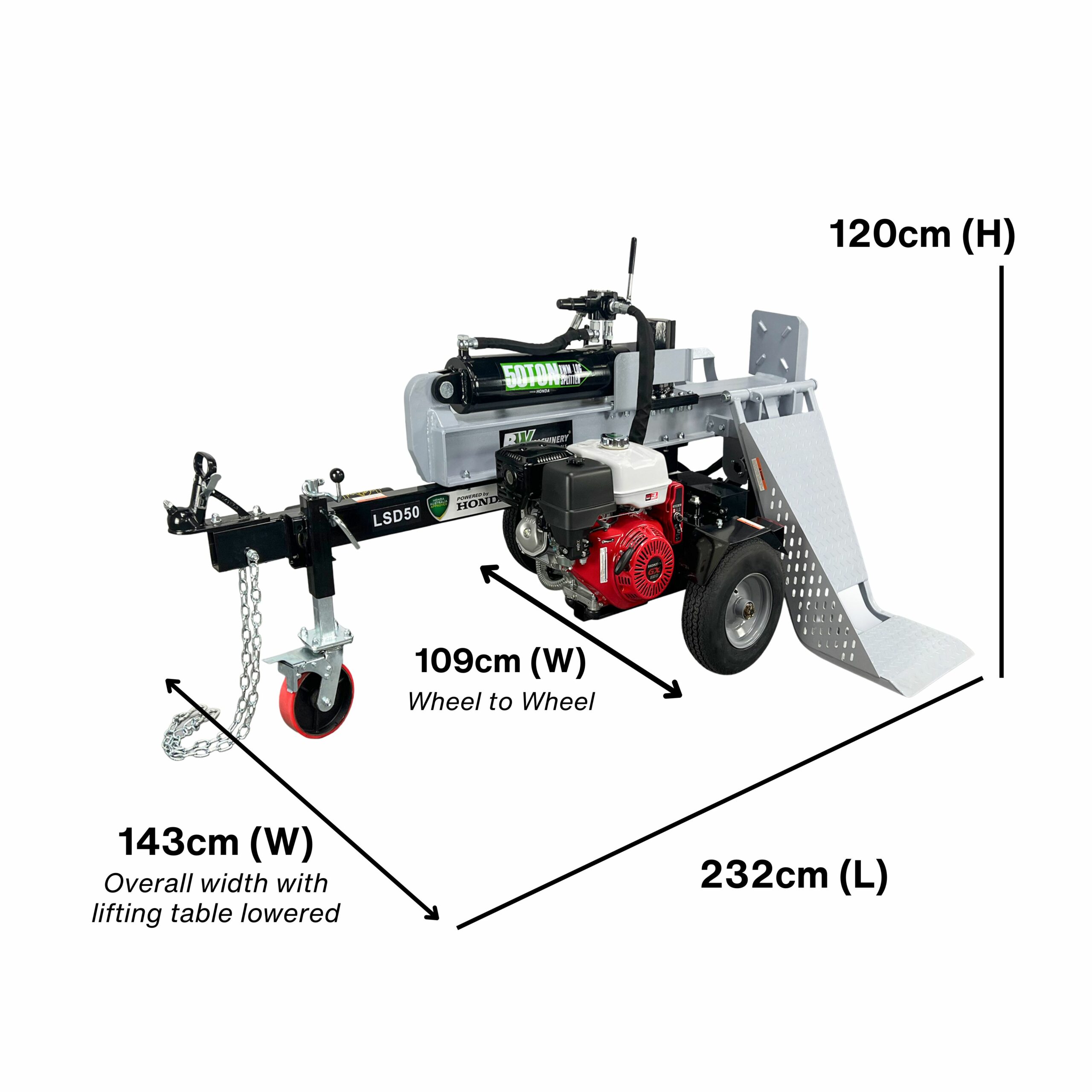

Display dimensions (L x H x W): | |
Warranty: | 2 Years Domestic Warranty |
3 Years Engine Warranty |
BWM LSD50 Series Log Splitter Manual (2023-current)
Need more information please contact us on 1300 454 585.
BWM LSD50 Series Log Splitter Parts List (2023-current)
Need more information please contact us on 1300 454 585.
