*This product is exclusive to BWM stores and TKD stores.
Bonus Pack: FREE log catcher x 1, Hydraulic Oil (14L) x 1, Engine Oil x 1
*Assemble service is available for in-store pick up only.
The BWM LS30H Log Splitter is powered by a genuine commercial Honda GX200 OHV engine (Honda Australia Approved) and built to perform in demanding applications. Featuring a 2-stage, (14GPM/3500psi) pump for maximum speed without loss of pressure and designed to split in both vertical and horizontal positions, for logs up to 26″ in diameter. A convenient lift handle provides added control for easier and safer transitions from vertical to horizontal positions while the high-performance wedge makes splitting easier and the log cradle moving split wood more efficient.
All our BWM log splitters have a minimum 2 years warranty, with premium range (LS30/H/LC, LS40/H/LC) having a 3 years warranty. For your peace of mind, we offer money back guarantee if your log splitter fails to split your wood*
- Powered by commercial Honda GX200 OHV Engine (Honda Australia Approved)
- 30 tons splitting force
- Working in both horizontal and vertical positions
- Split logs up to 26″ (660mm) in diameter
- 2 stage pump at 14GPM/3500psi
- Up to 12 seconds cycle time
- Auto return valve
- Heavy duty tow bar with 50mm coupler
- Portable design with an 8″ jockey wheel
- 3 Years Warranty
- 3 Years Engine Warranty
To purchase online:
B.W. Machinery -https://bwmachinery.com.au/product/bwm-ls30h-log-splitter/
Tool Kit Depot - https://toolkitdepot.com.au/bwm-ls30h-log-splitter-ls30h/

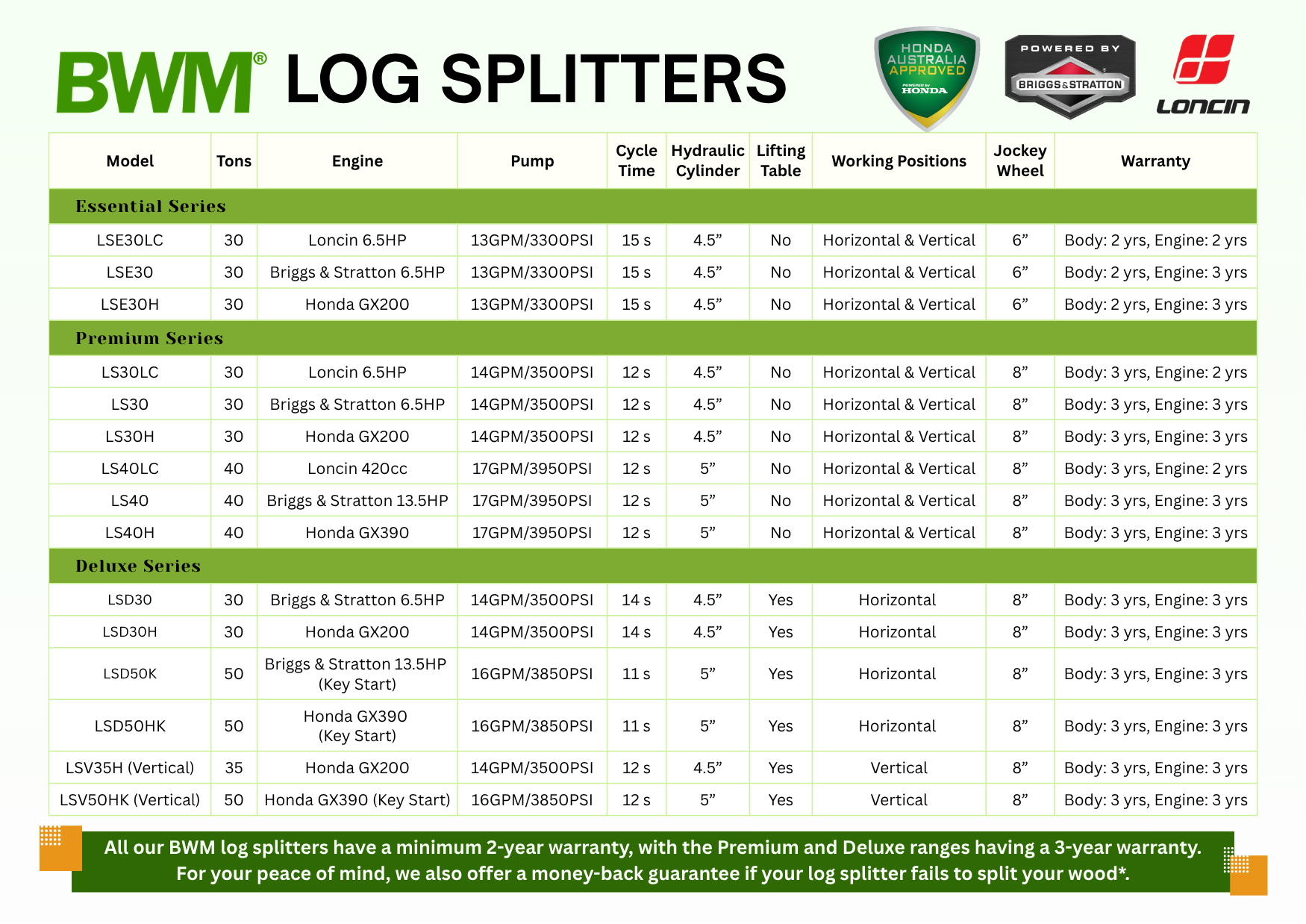

Comparison Chart (click to enlarge)
Splitting force | 30 Tons |
Operation | Horizontal and vertical |
Cycle time | Up to 12 seconds |
Engine | Honda GX200 OHV engine (Honda Australia Approved) |
Hydraulic pump | 2 stage pump at 14GPM/3500psi |
Hydraulic cylinder diameter | 4.5" |
Valve | Auto return valve |
Maximum log diameter | 26" (660mm) |
Coupling | 50mm with safety chain |
Jockey wheel | 8" |
Fuel volume | 3.1L |
Oil volume | 0.6L (10W30) |
Petrol type | Unleaded |
Start system | Recoil pull start |
Weight(N.W/G.W) | 229KG/259KG |
Package dimensions | 1905*475*770mm |
Display dimensions (L x H x W) | 2290*1230*1050mm |
Warranty | 3 Years Domestic Warranty |
3 Years Engine Warranty |
BWM LS30H Log Splitter Manual (no jockey wheel, -2022)
BWM LS30H Log Splitter Manual (w jockey wheel, 2023-current)
Need more information please contact us on 1300 454 585.
BWM LS30H Log Splitter Parts List (no jockey wheel, -2022)
BWM LS30H Log Splitter Parts List (jockey wheel, 2023-current))
Need more information please contact us on 1300 454 585.
