*Assemble service is available for in-store pick up only.

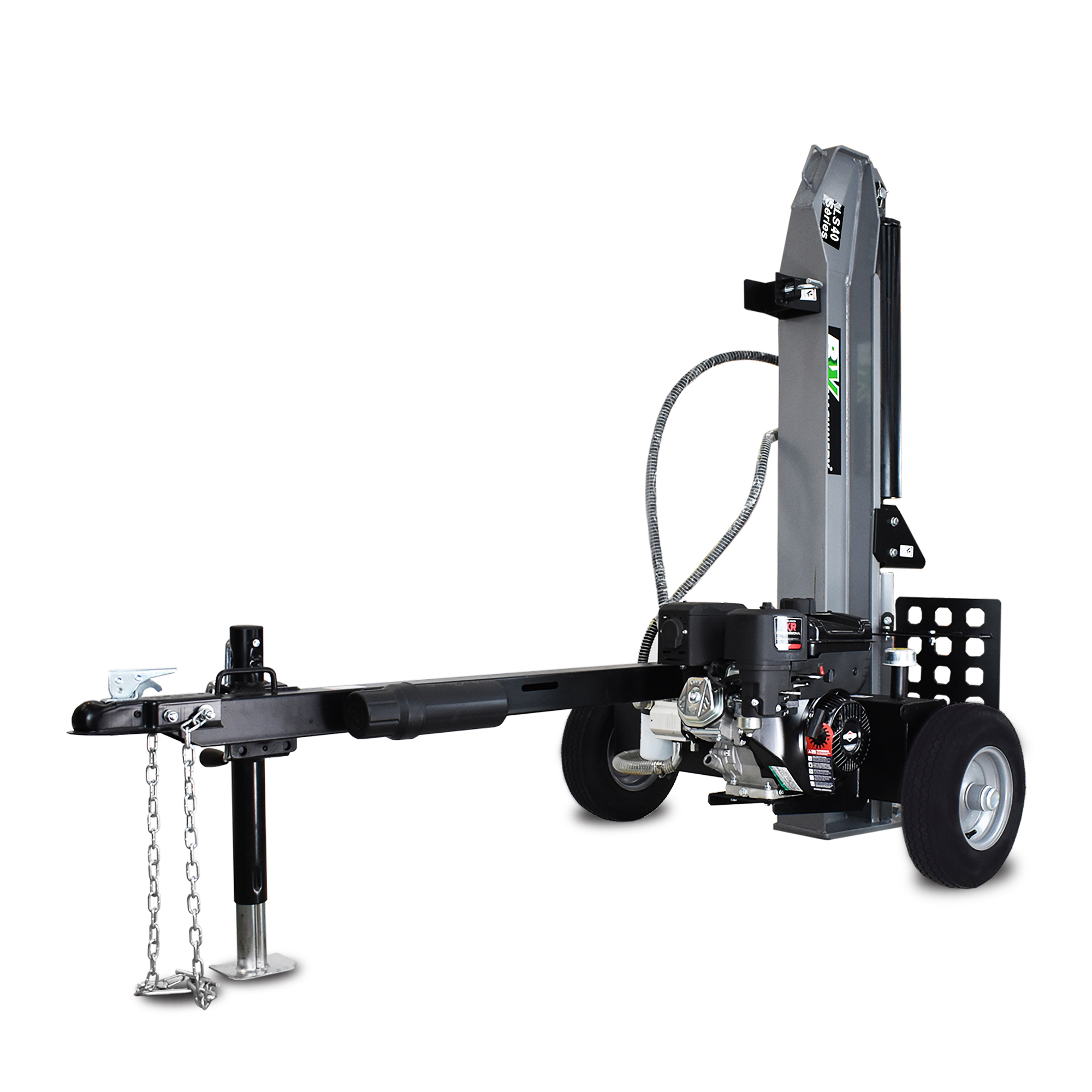

The BWM LS40 Log Splitter is powered by a genuine commercial Briggs and Stratton 13.5HP OHV engine and is built to perform in demanding applications. Featuring a 2-stage, (17GPM/3950psi) pump for maximum speed without loss of pressure and is designed to split in both vertical and horizontal positions, for logs up to 30″ in diameter. A convenient lift handle provides added control for easier and safer transitions from vertical to horizontal positions while the high-performance wedge makes splitting easier and the log cradle moves split wood more efficiently.
All our BWM log splitters have a minimum 2 years warranty, with premium range (LS30/H/LC, LS40/H/LC) having a 3 years warranty. For your peace of mind, we offer money back guarantee if your log splitter fails to split your wood*
- Powered by commercial Briggs & Stratton 13.5HP Engine
- 40 tons splitting force
- Working in both horizontal and vertical positions
- Split logs up to 30″ (762mm) in diameter
- 2 stage pump at 17GPM/3950psi
- Up to 12 seconds cycle time
- Auto return valve
- Heavy duty tow bar with 50mm coupler
- Portable design with a 8″ jockey wheel
- 3 Years Warranty
- 3 Years Engine Warranty
To purchase online:
B.W. Machinery - https://bwmachinery.com.au/product/bwm-ls40-log-splitter/
Comparison Chart (click to enlarge)
Splitting force | 40 Ton |
Operation | Horizontal and vertical |
Cycle time | Up to 12 seconds |
Engine | Briggs & Stratton 13.5hp OHV Engine |
Hydraulic pump | 2 stage pump at 17GPM/3950psi |
Hydraulic cylinder diameter | 5" |
Valve | Auto return valve |
Maximum log diameter | 30" (762mm) |
Coupling | 50mm with safety chain |
Jockey wheel | 8" |
Fuel volume | 6.6L |
Oil volume | 1.1L (SAE30) |
Petrol type | Unleaded |
Start system | Recoil pull start |
Weight(N.W/G.W) | 263KG/294KG |
Display dimensions(LxHxW) | 2290mm*1230mm*1090mm |
Package dimensions | 1905*570*800mm |
Warranty | 3 Years Domestic Warranty |
3 Years Engine Warranty |
BWM LS40 Log Splitter Manual (no jockey wheel verstion)
BWM LS40 Log Splitter Manual (jockey wheel version)
Need more information please contact us on 1300 454 585.
BWM LS40 Log Splitter Spare Parts (no jockey wheel version)
BWM LS40 Log Splitter Spare Parts (jockey wheel version)
Need more information please contact us on 1300 454 585.
