*Assemble service is available for in-store pick up only.

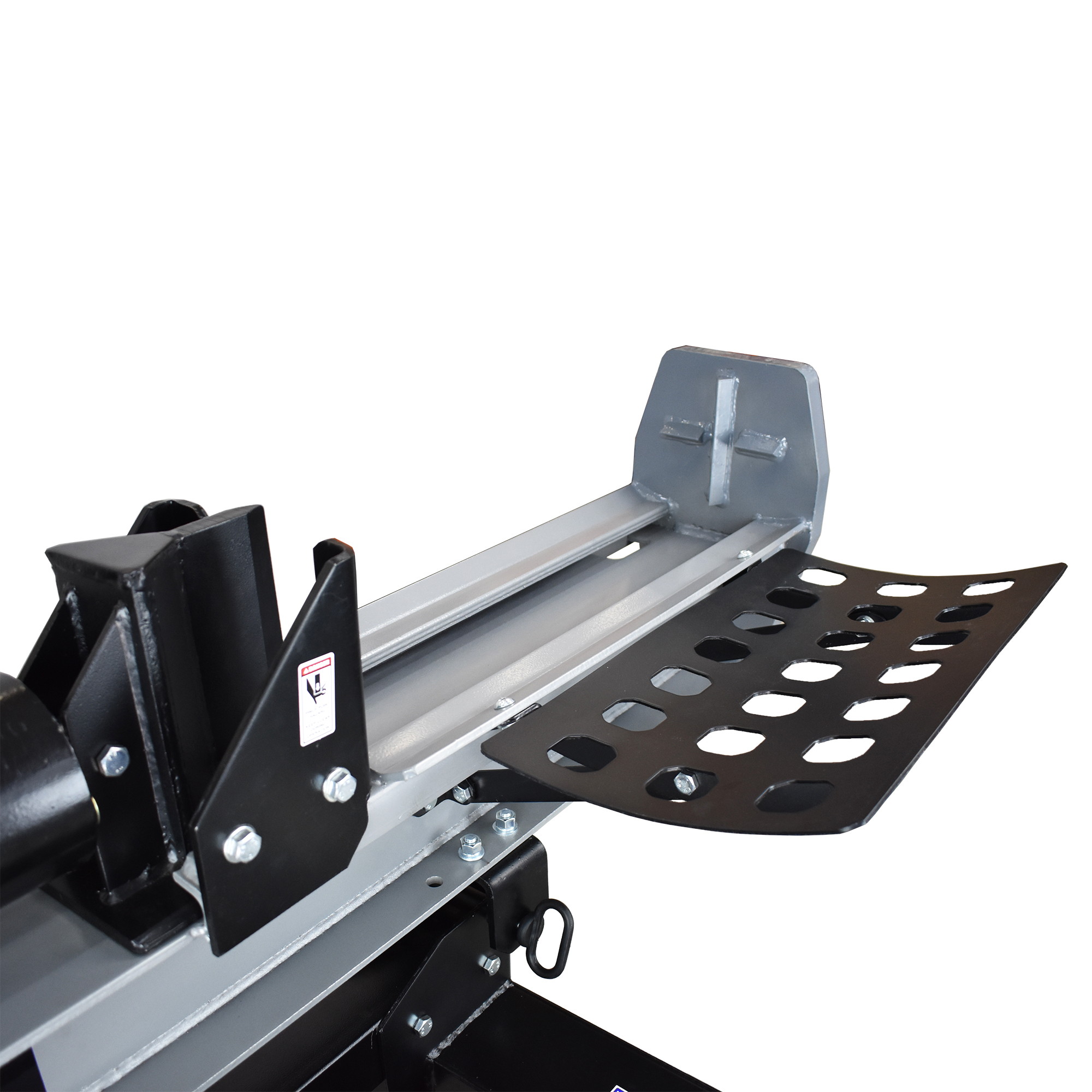

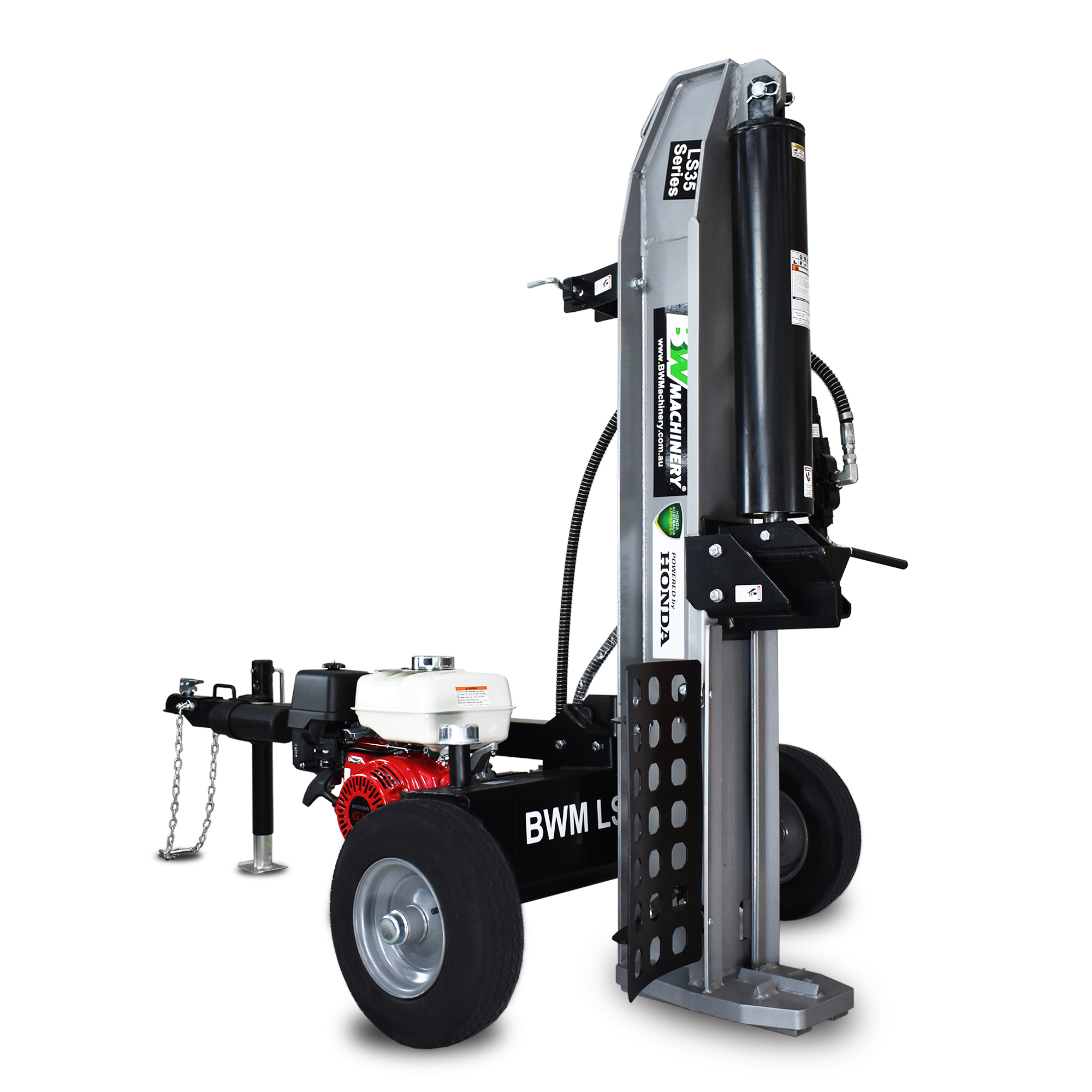

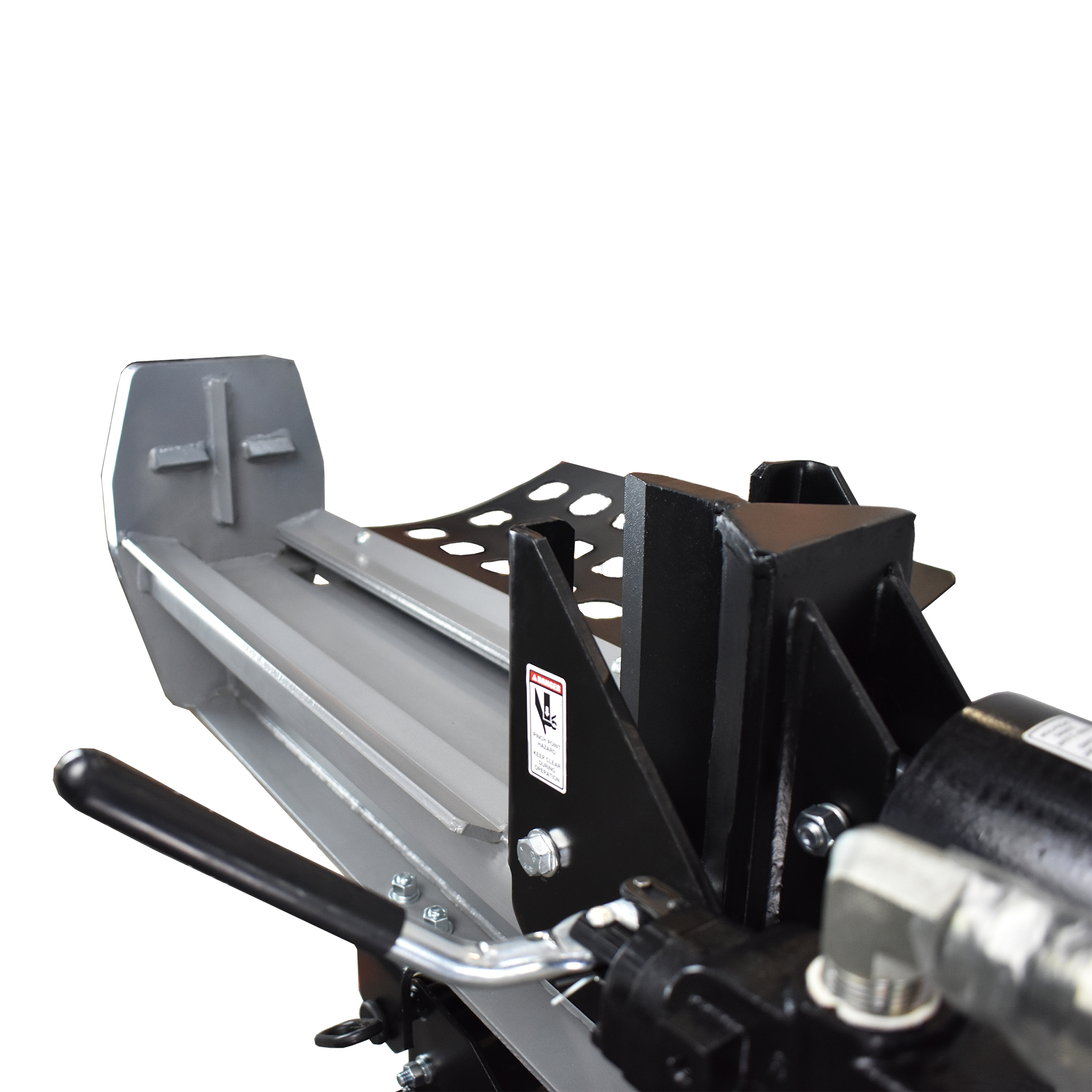

The BWM LS35H Log Splitter is powered by a genuine commercial Honda GX270 OHV engine (Honda Australia Approved) and built to perform in demanding applications. Featuring a 2-stage, 66 LPM (17.5 GPM/4000psi) pump for maximum speed without loss of pressure and is designed to split in both vertical and horizontal positions, for logs up to 30” in diameter. A convenient lift handle provides added control for easier and safer transitions from vertical to horizontal positions while the high-performance wedge makes splitting easier and the log cradle moves split wood more efficiently.
All our BWM log splitters have a 2 years warranty. For your peace of mind, we offer money back guarantee if your log splitter fails to split your wood*
- Powered by commercial Honda GX270 OHV engine (Honda Australia Approved)
- 35 tons splitting force
- Working in both horizontal and vertical positions
- Split logs up to 30″ (762mm) in diameter
- 2 stage pump at 17.5 GPM/4000psi
- Up to 11.5 seconds cycle time
- Auto return valve

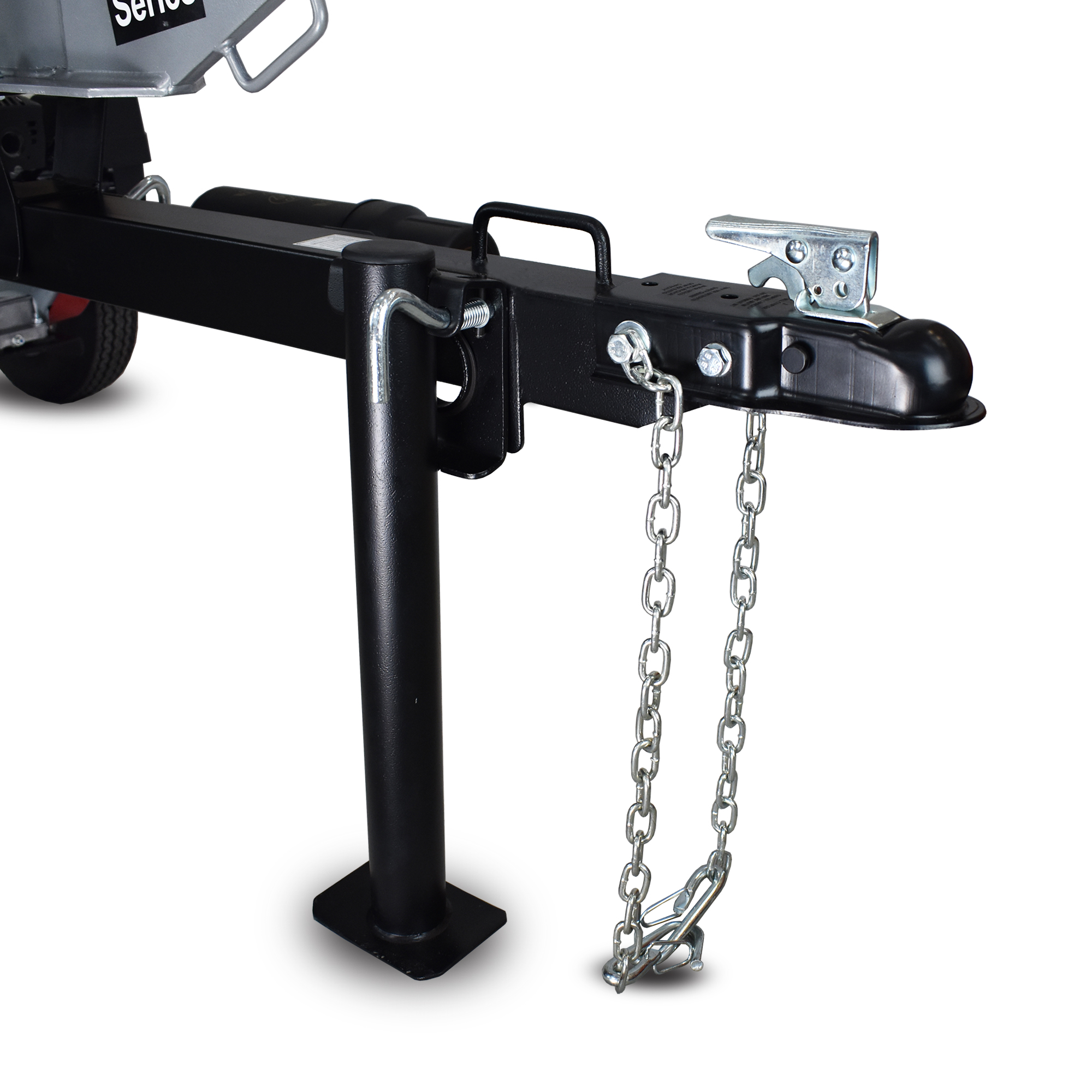

- Heavy duty tow bar with 50mm coupler
- Portable design for easy transportation
- 2 Years Warranty
- 3 Years Engine Warranty
To purchase online:
B.W. Machinery - https://bwmachinery.com.au/product/bwm-ls35h-log-splitter/
Splitting force | 35 Ton |
Operation | Horizontal and vertical |
Cycle time | Up to 11.5 seconds |
Engine | Honda GX270 OHV engine (Honda Australia Approved) |
Hydraulic pump | 2 stage pump at 17.5 GPM/4000psi |
Hydraulic cylinder diameter | 5" |
Valve | Auto return valve |
Maximum log diameter | 30" (762mm) |
Maximum log length | 25" (635mm) |
Coupling | 50mm with safety chain |
Fuel volume | 5.3L |
Oil volume | 1.1L (10W30) |
Petrol type | Unleaded |
Start system | Recoil pull start |
Weight(N.W/G.W) | 259KG/296KG |
Package dimensions | 1840*800*550mm |
Warranty | 2 Years Domestic Warranty |
3 Years Engine Warranty |
BWM Log Splitter Honda Manual Book
Need more information please contact us on 1300 454 585.
BWM Log Splitter Spare Parts Honda
Need more information please contact us on 1300 454 585.
